Xantrex Freedom XC PRO 3000 3000W Marine Inverter Charger 12vDC in 120vAC Out

$2,040.44
by Xantrex
Type: Inverters

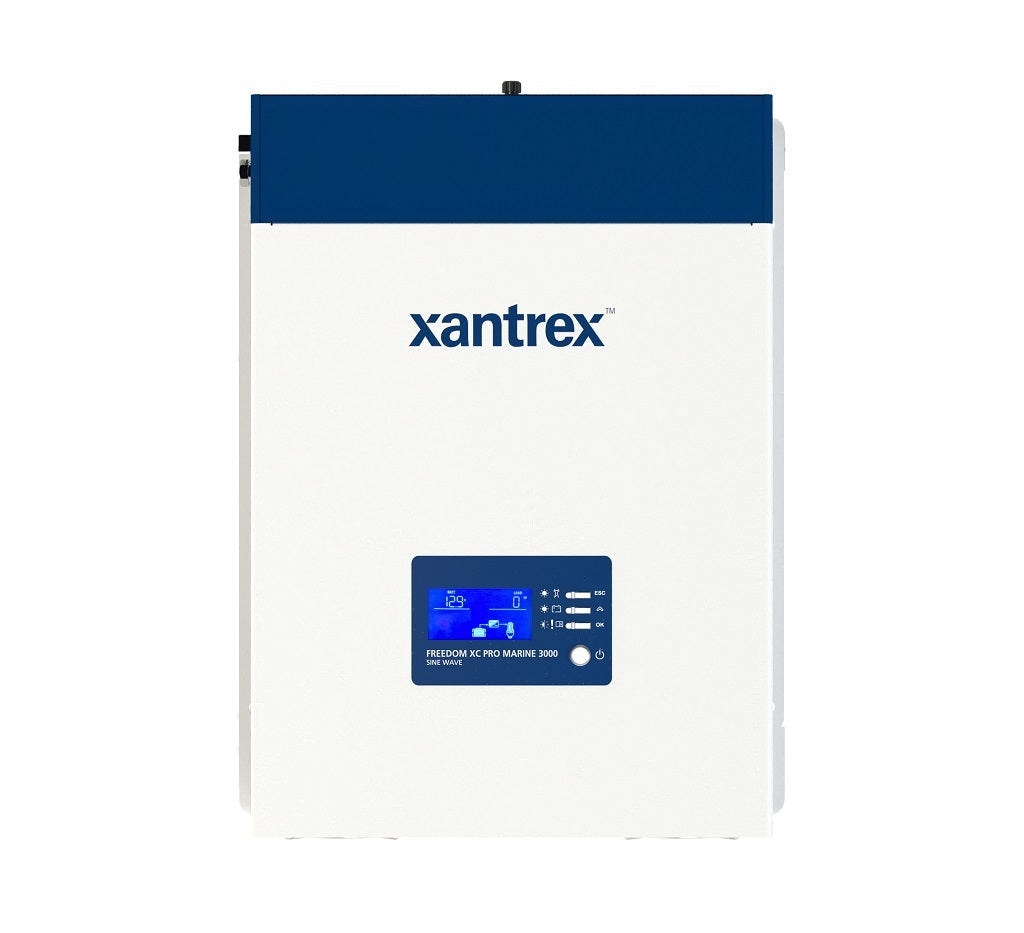

Xantrex Freedom XC PRO Marine 3000

Model: 818-3015
  • Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
  • Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
  • Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
  • Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
  • Battery Equalization: Maximizes flooded battery life
  • Dead Battery Charging Down to 0 Vdc
  • Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
  • Easily configurable settings to charge any lithium ion battery

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR

The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications
ELECTRICAL SPECS - INVERTER
AC Output Operating Voltage Options 120, 110, 108 Vac
Continuous Output Power Continuous Power 3000 W @40 C True sine wave (TSW)
Continuous AC Output Current 25 A
Surge Power 6000 W (? 5 sec)
Frequency (Configurable) 60 (or 50) Hz
Peak Efficiency 91%
Full Load Efficiency gretaer than or equal to 84%
DC Input Operating voltage range 10.1 - 18.0 VDC
DC Input Max Non-Operating Voltage 25.2 Vdc
DC Nominal Current at Full Load 304 Adc
ELECTRICAL SPECS - BATTERY CHARGER
Min Battery Voltage for Charging 0.0 Vdc
Max DC Output Voltage 18.0 Vdc (custom battery type)
Selectable DC Output Current User Selectable: 5 - 150 A
Full Load Max AC Input Current 25 Arms
Max DC Charge Current (selectable down to 5A) 150A
Operating Input AC Pass-Through Voltage Range 85-140 Vac
Safe Non-Operating Input AC Voltage Range Up to 240 Vac RMS
Power Factor at Full Charge Rate > 98%
GENERAL SPECS
Operating Temperature Range 4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Operating Humidity Range 5 to 95% RH, non-condensing
Transfer Relay AC Current Rating 50 A surge, 40 A continous
DC Input/Output Nominal Voltage (inverting/ Charging) 12.0 Vdc
L x W x H (without flanges) 15.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm)
L x W x H (with flanges) 16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)

What's in the Box:
  • Freedom XC PRO 2000
  • one set of plastic bushings for large DC cables
  • one pre-installed DC ground enclosure lug
  • two AC knockout hole plugs
