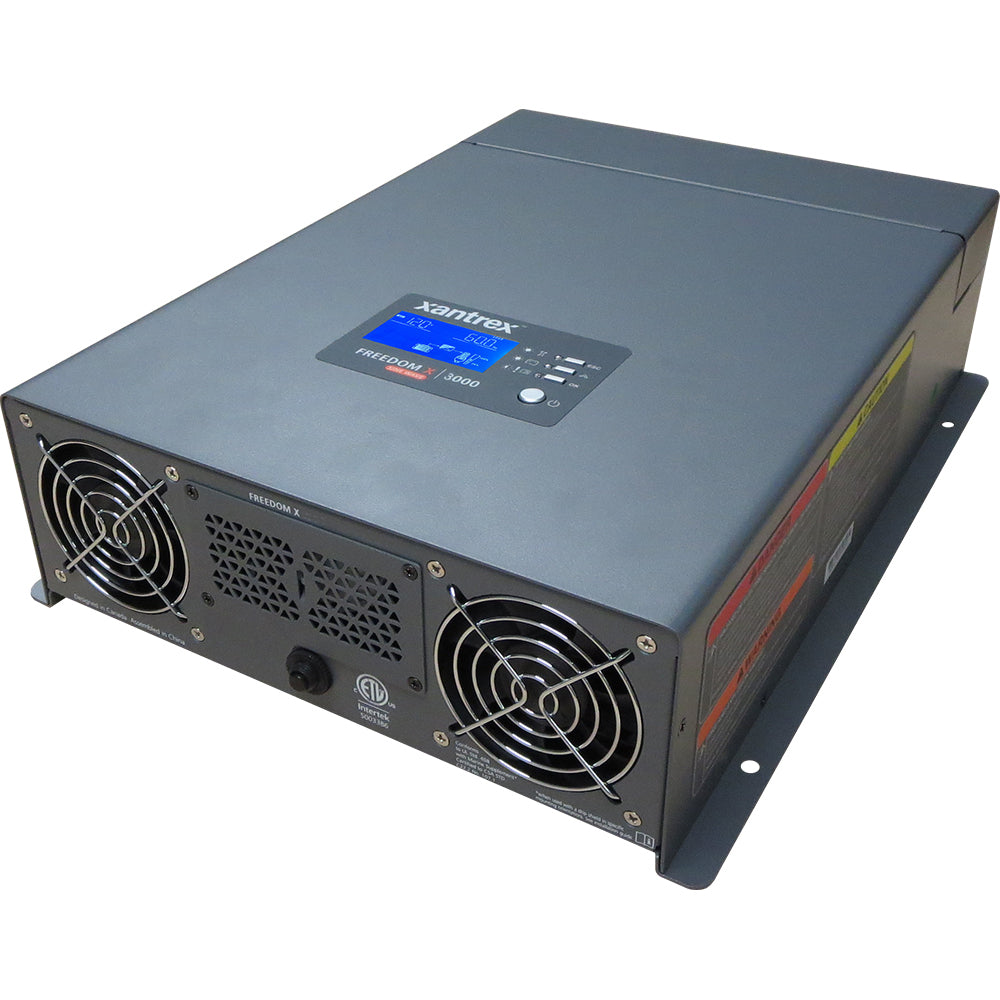

Xantrex Freedom X3000 3000W True Sine Wave Inverter

$1,260.92
by Xantrex
Type: Inverters

Xantrex Freedom X 3000 Watt True Sinewave Inverter

Model: 817-3000
  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications
Electrical Specifications
Operating voltage 120, 110, 108 VAC
Continuous power Continuous Power 3000 W @40 C True sine wave
Continuous current 25 Amps
Surge power 6000 watts
Frequency 60 Hz
Peak efficiency 91%
Full load efficiency Greather than or equal to 85%
Operating voltage range 85-140 VAC
Safe Non-Operating voltage range Up to 240VAC
General Specifications
Operating temperature range -4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Humidity 5 to 95% RH, non-condensing
Transfer Relay Rating 30Amp
Operating voltage range LBCO voltage - 18.0 VDC
Maximum Non-Operating Voltage 24.0 VDC
Nominal Voltage (Inverting) 12 VDC
Nominal Current at Full Load 288ADC
Dimensions 15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm)

What's in the Box:
  • Freedom X unit
  • Plastic bushings for large DC cables
  • Pre-installed ground lug
  • Documentation
