Wichard HR D Shackle - Diameter 15/32" [11206W]

$177.98 $209.39
by Wichard Marine
Type: Shackles/Rings/Pins

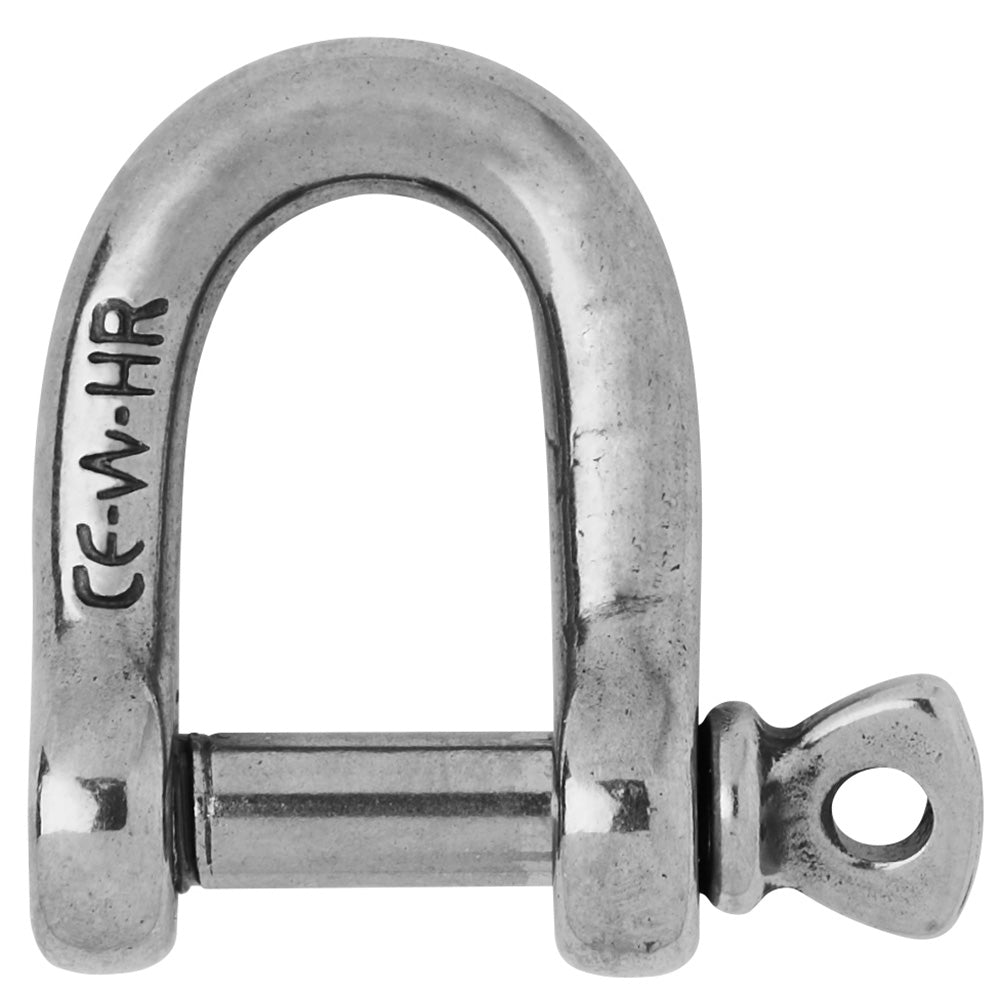

HR D Shackle - Diameter 15/32"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Do not use it for mooring applications

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Working load (lb) 7930
  • WLL (lb) 4400
  • Breaking load (lb) 22040
  • Weight (lb) 0.423

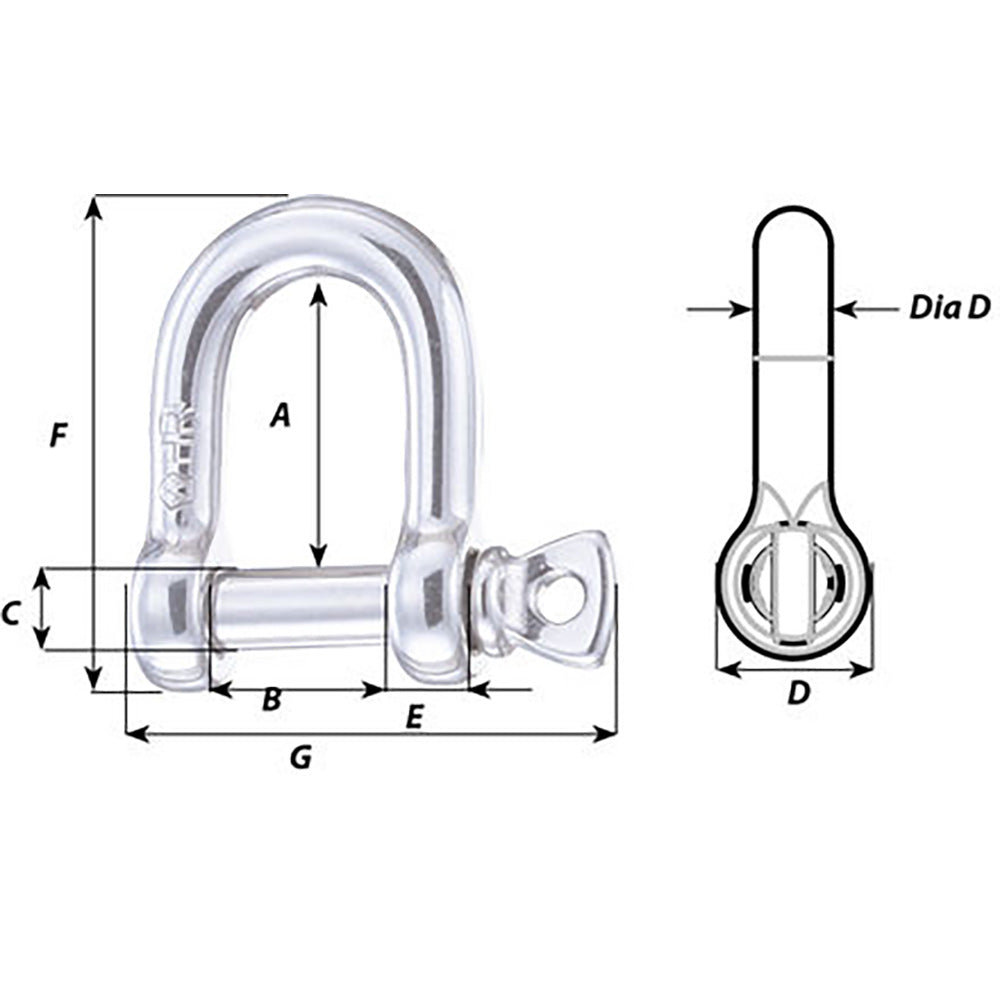

  • A (inch) 1 17/32"
  • B (inch) 15/16"
  • D diameter (inch) 15/32"
