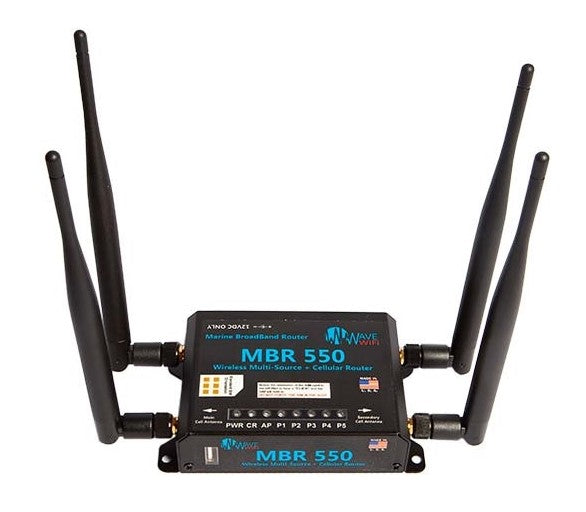

Wave WiFi MBR550 Router
Model: MBR550
- (2) Access Point antennas (2.4GHz)
- (2) Cellular 4G Rubber Duck Antenna
- 1) 12VDC Power Adapter
- (1) SIM slot
- (1) Quick Start / Configuration Guide
- One Year Limited Warranty
The MBR 550 has an internal access point and is a Multi-Source Failover Router. This means that it can manage multiple sources at a time as well as produce the wireless signal to distribute the data to wireless devices. The MBR 550 will give you the ability to manage these sources from one easy to access browser based page.
From this page you can manage any additional Wave WiFi devices such as access points and receivers, as well as third party satellite, or cell devices. With the MBR 550 you will enjoy the ability to travel with cell functionality built in. The 550 comes with a SIM slot for SIM activated Cell Data, and has all the other great features of the MBR 500.
These models are also capable of supporting ‘Guest Networks’. This means that any devices connected to the Guest Network will not have access to the MBR 500 or 550’s manage page. They will only be able to use the data provided by the MBR router and not be able to manipulate it.
Specifications
| Wireless type |
Cellular and Internal Access Point |
| Ethernet Speed |
10/100 Mbits |
| Cellular bands |
4G LTE Cat6: B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B30, B41
3G WCDMA: B1, B2, B3, B4, B5, B8 |
| Internal Access Point (AP) |
2.4GHz Broadcast (802.11 n) |
| Power |
DC Power 12v - 1a |
| Antenna Connectors |
(2) SMA Male [AP] + (2) SMA Female [Cell] |
What's in the Box:
- (2) Access Point antennas (2.4GHz)
- (2) Cellular 4G Rubber Duck Antennas
- (1) 12VDC Power Adapter
- (1) SIM slot
- (1) Quick Start / Configuration Guide
