UFlex Power A Electronic Control Package Single EngineSingle Station Electronic ThrottleElectronic Shift EE11

UFlex Power A Electronic Control Package - Single Engine/Single Station - Electronic Throttle/Electronic Shift [EE11]

$4,403.18
by Uflex USA
Type: Engine Controls

Power A EE11 - Electronic Control Package

-Single Engine/Single Station - Electronic Throttle/Electronic Shift


Power A Mark II™ Electronics Control Systems
  • Private Protocol CAN bus for data transmission
  • Connection of multiple stations up to 4 controls
  • Modular System
  • Direct communication w/electronic engines (SAE J1939 or NMEA 2000)
  • Plug'N Play connectivity
  • Automatic engine synchronization
  • Dock Assist
  • Fully programmable shift delays


EE11 Package Includes:

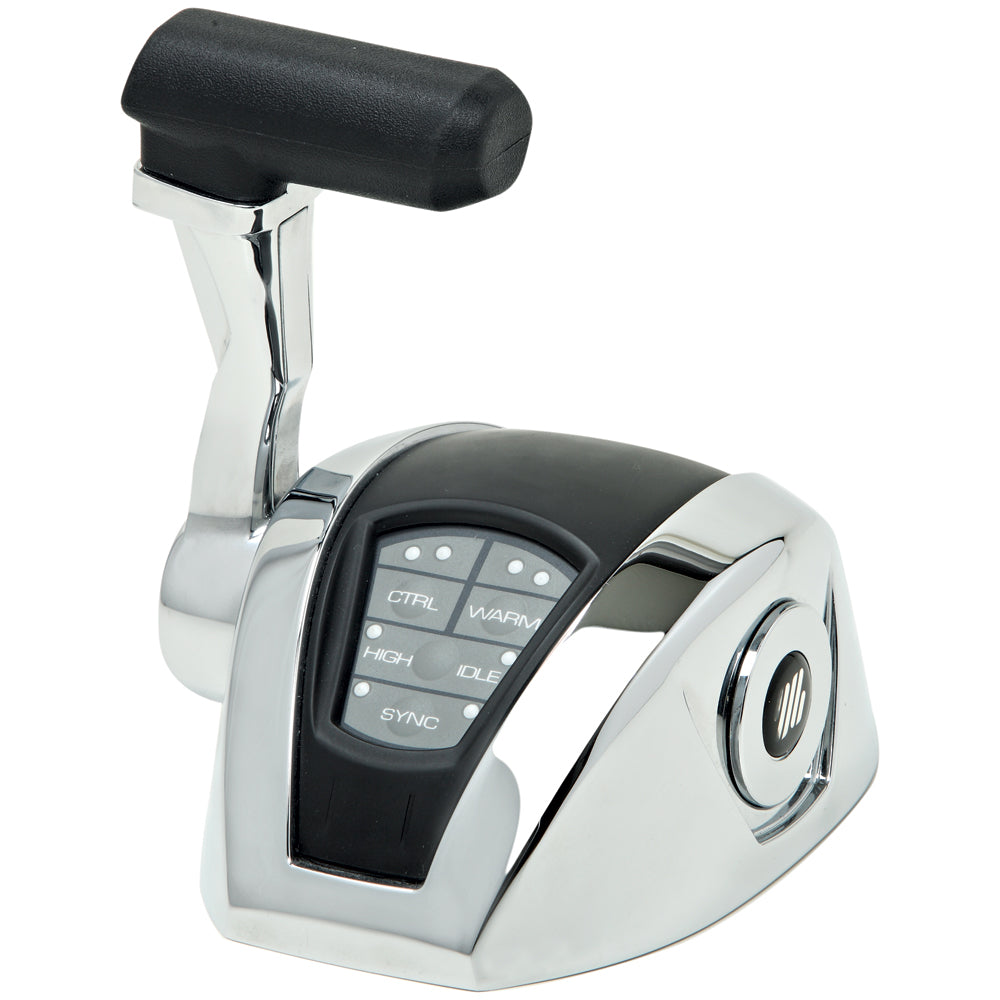

  • 42009G - (1) PA2-B1 - Single Lever Control w/o Trim
  • 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen
  • 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface
  • 42028L - (1) PA2-NT - Network Terminator
  • 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'
  • 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'
  • 71021K - (1) CAN-10 - Network Connection Cable 33'
  • 73639T - (2) CAN-1 - Network Connection Cable 3'
  • 42023A - (1) PA2-SU - Electronic Shift Unit
  • 42060G - (2) M-S1 - Solenoid Shift Cable 3.3'

Quick Guide (pdf)
Brochure (pdf)
