UFlex Power A Electronic Control Package Dual EngineSingle Station Mechanical ThrottleMechanical Shift wTrim MM21T

UFlex Power A Electronic Control Package - Dual Engine/Single Station - Mechanical Throttle/Mechanical Shift w/Trim [MM21T]

$10,611.60
by Uflex USA
Type: Engine Controls

Power A MM21T - Electronic Control Package

-Dual Engine/Single Station - Mechanical Throttle/Mechanical Shift w/Trim


Power A Mark II™ Electronics Control Systems
  • Private Protocol can bus for data transmission
  • Connection of multiple stations up to 4 controls
  • Modular System
  • Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
  • Plug'N Play connectivity
  • Automatic engines synchronization
  • Dock Assist
  • Fully programmable shift delays


MM21T Package Includes:

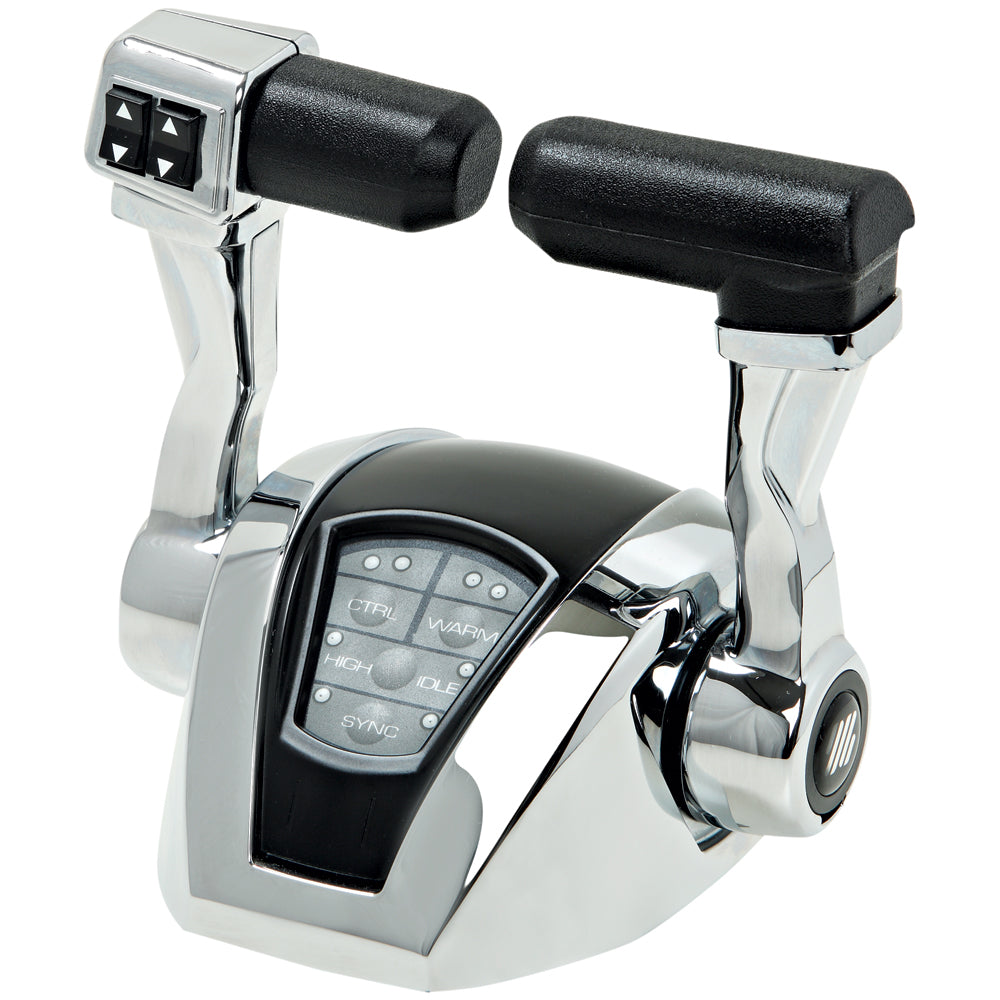

42012V - (1) PA2-B2T - Dual Lever Control w/Trim
  • 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen
  • 42027J - (4) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle
  • 42028L - (1) PA2-NT - Network Terminator
  • 42053K - (1) M-P3 - Main Power Supply Cable 9.8'
  • 71021K - (2) CAN-10 - Network Connection Cable 33'
  • 73639T - (3) CAN-1 - Network Connection Cable 3'
  • 42026G - (1) PA2-PU - Power Supply Unit f/12V Systems
  • 42056S - (4) M-PE1 - Power Extension Cable 3.3'

    • Quick Guide (pdf)
    Brochure (pdf)
