UFlex Power A Electronic Control Package - Dual Engine/Single Station - Electronic Throttle/Mechanical Shift [EM21]

$7,990.36
by Uflex USA
Type: Engine Controls

Power A EM21 - Electronic Control Package

-Dual Engine/Single Station - Electronic Throttle/Mechanical Shift


Power A Mark II™ Electronics Control Systems
  • Private Protocol can bus for data transmission
  • Connection of multiple stations up to 4 controls
  • Modular System
  • Direct communication w/electronic engines(SAE J 1939 or NMEA 2000)
  • Plug'N Play connectivity
  • Automatic engines synchronization
  • Dock Assist
  • Fully programmable shift delays


EM21 Package Includes:

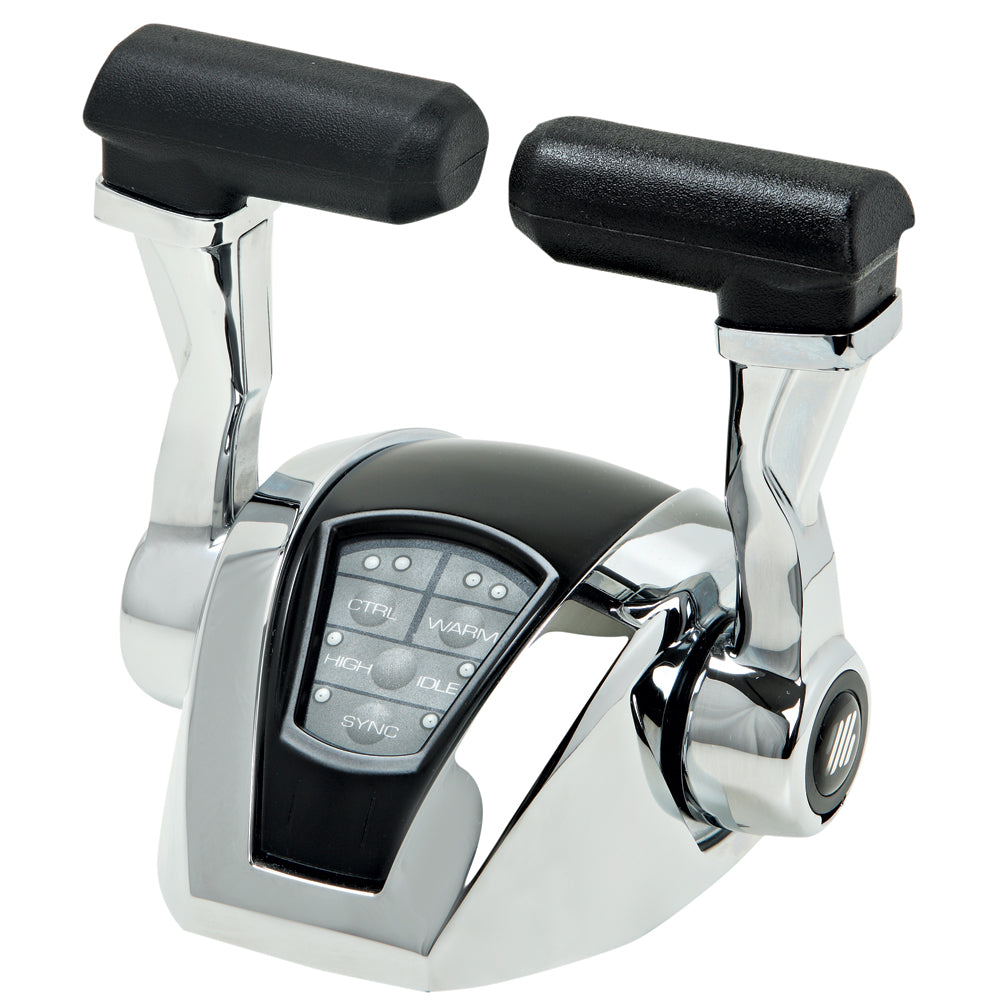

  • 42011T - (1) PA2-B2 - Dual Lever Control w/o Trim
  • 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen
  • 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface
  • 42027J - (2) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle
  • 42028L - (1) PA2-NT - Network Terminator
  • 42029N - (2) T-VT2 - Universal V-Throttle Cable 6.5'
  • 42053K - (1) M-P1 - Main Power Supply Cable, 9.8'
  • 71021K - (2) CAN-10 - Network Connection Cable 33'
  • 73639T - (2) CAN-1 - Network Connection Cable 3'
  • 42026G - (1) PA2-PU - Power Supply Unit f/12V Systems
  • 42056S - (2) M-PE1 - Power Extension Cable 3.3'

Quick Guide (pdf)
Brochure (pdf)
