Simrad Verado autopilot fitting kit for MKII Pumps 1, 2, 3, 4 &5
Model: 000-15943-001
Fitted hose kit designed for simplified Verado Autopilot installations, reducing the opportunity for faulty field terminated hydraulic hoses and incorrect installation layouts.

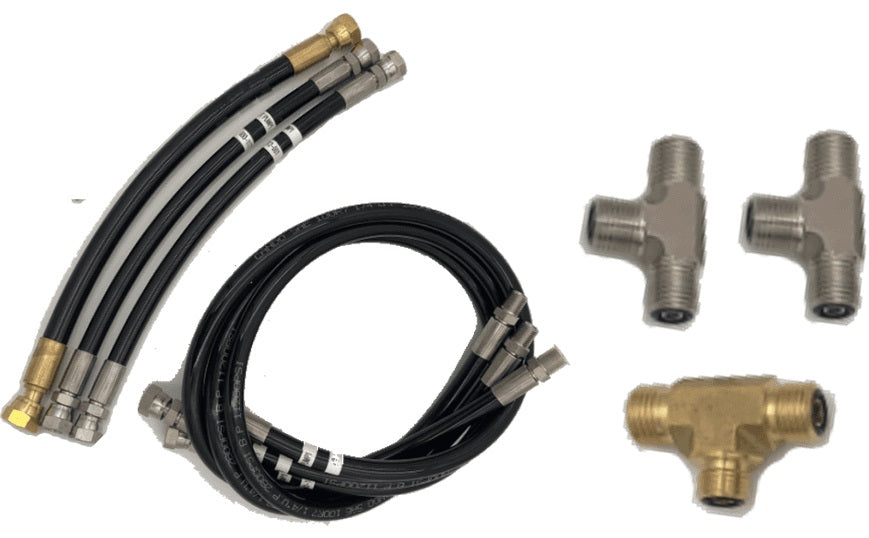

What's in the Box:
- 3 x Hoses 1/4" dia. (Black): 3000 PSI max, 980 mm (38.6") 9/16-18 ORFS, Female, Stainless to 9/16-24 ORFS Female, Stainless
- 2 x Hoses 1/4"Dia. (Black):3000 PSI max, 305 mm (14.9"), 9/16 ,Female Stainless to 9/16 ORFS Female Stainless
- 1 x Hose 3/8" Dia. (Black):2250 PSI max, 378 mm (14.9"), 11/16 ORFS, Female Brass to 11/16 ORFS, Female Brass
- 1 x T Connector: Brass: 11/16 ORFS Male <9/16 ORFS Male> 11/16 ORFS, Male
- 2 x T Connectors: Stainless: 9/16 ORFS Male < 9/16 ORFS Male> 9/16 ORFS, Male
