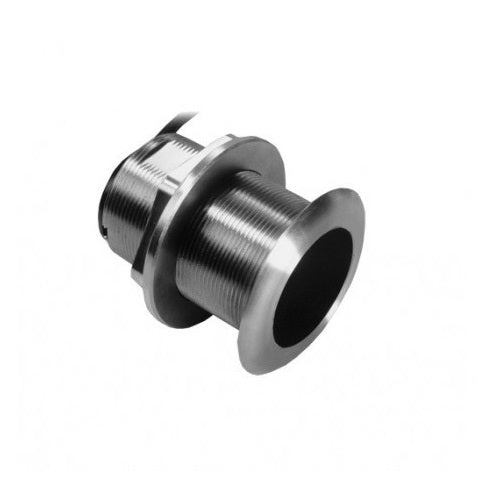

Simrad SS60 Stainless Steel 600 W Thru Hull 50/200 Khz Depth/Temp (20° tilt)
Model: 000-13786-001
- Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
- Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
- Provides extremely accurate data.
- The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
- The low profile housing minimises drag with just 5mm extending outside of the hull.
- Easily connect to NSSevo3, Lowrance HDS G3
The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Specifications
| Frequency |
50/200 kHz |
| Power rating |
600 watts |
| Speed sensor |
No |
| Temperature sensor |
Yes |
| Mounting style |
Thru Hull |
| Elements |
1 |
| Beamwidth @ -3db |
45 (50 kHz) 12 (200 kHz) |
| Cable length |
10 meters |
| Connector |
9-pin black |
