Simrad PumpMK2 Fitting Kit ORB Steering Systems For MK2 PUMP 1,2,3,4,5

$199.00
by Simrad
Type: Autopilot - Accessories

Simrad Autopilot ORB hose fitting kit for MKII Pumps 1, 2, 3, 4 &5

Model: 000-15942-001

Fitted hose kit designed for simplified ORB system installation reducing the opportunity for faulty field terminated hydraulic hoses and incorrect installation layouts.

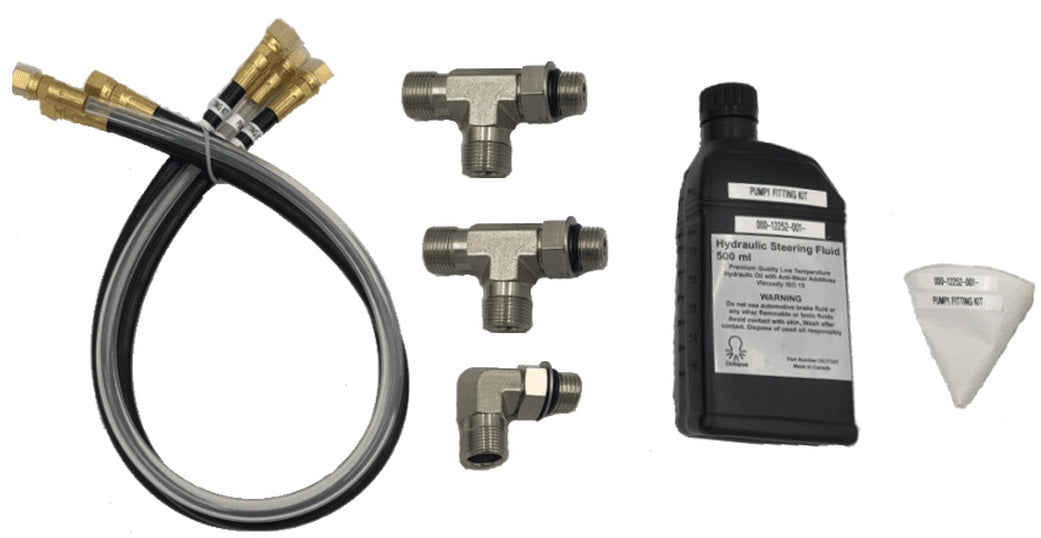

What's in the Box:
  • 2 x T Connectors ORB-05M > 9/16-24 UNF > 9/16-24 UNF
  • 1 x Right angle connector ORB-05M > 9/16-24 UNF
  • 2 x Hoses 5/16" dia. (Black) 1500 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-24 UNF
  • 1 x Hose 5/16" dia. (Clear) 65 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-25 UNF
  • 1 x Bottle of hydraulic fluid
  • 1 x Filter funnel
