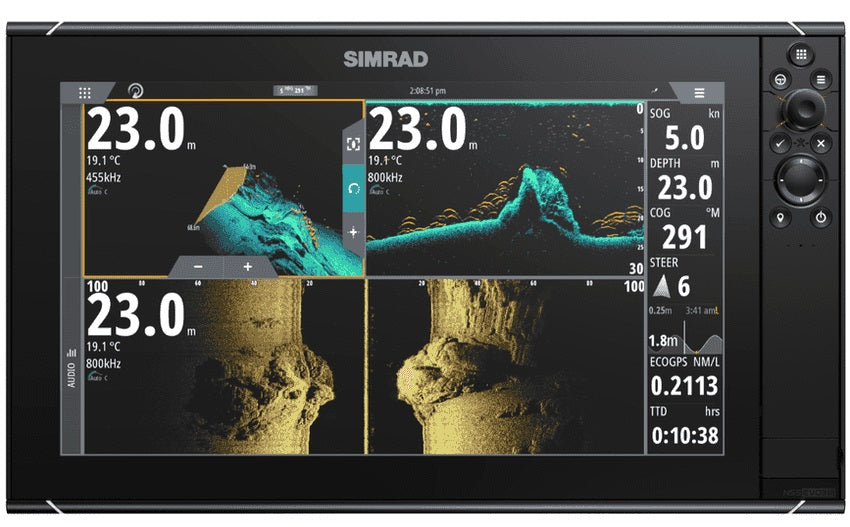

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
Physical |
Dimensions |
437 x 256 x 98 mm (17.19 x 10.08 x 3.82") with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80") |
Weight |
4.65kg/10.25lb |
Environmental |
Operating temperature range |
-15°C to +55°C (5° F to 131° F) |
Environment Shock Vibration |
100,000 cycles of 20G |
Storage temperature range |
-20°C to +60°C (4°F to 140°F) |
Water resitance |
IPX6 and 7 |
Power |
Supply voltage |
10 - 31.2 V DC |
Fuse rating |
7.5A |
Power consumption (Max) |
40W |
Display |
Display backlight color |
White |
Display resolution |
1080 x 1920 |
Display screen brightness |
1200 nits |
Display size and type |
High Visibility SolarMax HD® IPS 7" optically bonded TFT |
Display viewing angles |
80° top/bottom, 80° left/right |
Connectivity |
Ethernet |
2 x 5 pin yellow connector x 1 Mbit |
Bluetooth |
Internal |
NMEA2000 connectivity |
1 x NMEA 2000 Micro-C port, 1 LEN |
NMEA 0183 connectivity |
1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
Video connectivity |
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
WiFi connectivity |
Internal |
Sonar |
Sonar frequencies |
40-250kHz 455-800kHz |
Sonar max depth |
3000’+ (tested with B175L) |
Sonar output power |
1kW RMS |
Compliance |
Compliance |
GPS |
GPS |
Internal |
GPS update rate |
10 Hz |
GPS channels |
34 |
GPS correction |
WASS, EGNOS, MSAS, GLONASS |
GPS position accuracy |
Horizontal Accuracy 3 m (9.8 ft) |
GPS time to first fix |
Cold start 50 sec, Satellite Reacquisition 5 sec |
