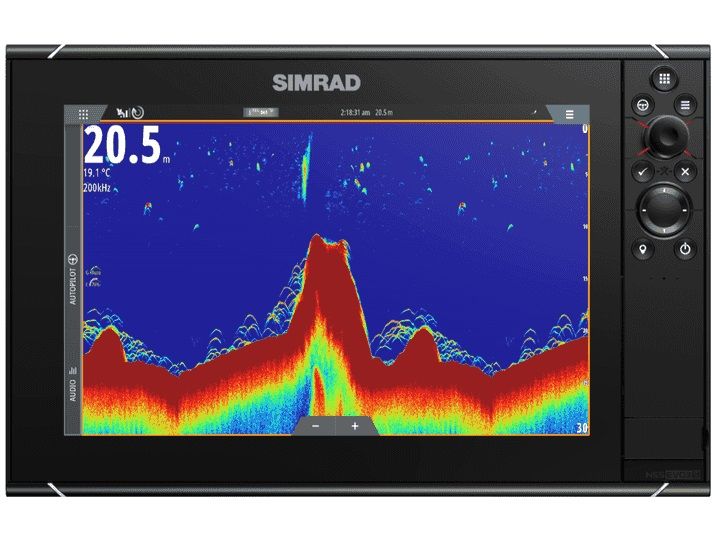

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
| Physical |
| Dimensions |
352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) |
| Weight |
3.10kg/6.83lb |
| Environmental |
| Operating temperature range |
-15°C to +55°C (5° F to 131° F) |
| Environment Shock Vibration |
100,000 cycles of 20G |
| Storage temperature range |
-20°C to +60°C (4°F to 140°F) |
| Water resitance |
IPX6 and 7 |
| Power |
| Supply voltage |
10 - 31.2 V DC |
| Fuse rating |
5A |
| Power consumption (Max) |
28W |
| Display |
| Display backlight color |
White |
| Display resolution |
800 x 1280 |
| Display screen brightness |
1200 nits |
| Display size and type |
High Visibility SolarMax HD® IPS 7" optically bonded TFT |
| Display viewing angles |
80° top/bottom, 80° left/right |
| Connectivity |
| Ethernet |
2 x 5 pin yellow connector x 1 Mbit |
| Bluetooth |
Internal |
| NMEA2000 connectivity |
1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 connectivity |
1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
| Video connectivity |
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
| WiFi connectivity |
Internal |
| Sonar |
| Sonar frequencies |
40-250kHz 455-800kHz |
| Sonar max depth |
3000’+ (tested with B175L) |
| Sonar output power |
1kW RMS |
| Compliance |
Compliance |
| GPS |
| GPS |
Internal |
| GPS update rate |
10 Hz |
| GPS channels |
34 |
| GPS correction |
WASS, EGNOS, MSAS, GLONASS |
| GPS position accuracy |
Horizontal Accuracy 3 m (9.8 ft) |
| GPS time to first fix |
Cold start 50 sec, Satellite Reacquisition 5 sec |
