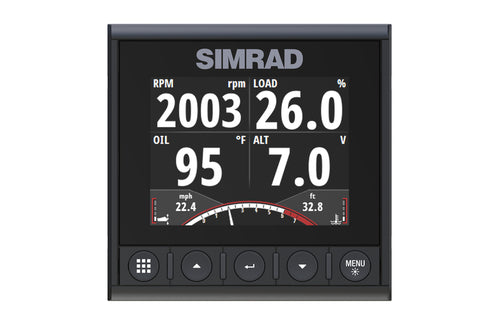

Simrad IS42 Digital Display
Model: 000-13285-001
UPC: 9420024155103
- Optically bonded 4.1-inch colour display
- Display wind, speed, depth, engine data, autopilot status and more
- Intuitive operation
- Easy installation
- Add an OP12 keypad for full Simrad autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- Low power consumption-
- Low-profile glass helm design
- Advanced AIS, receive AIS messages and call DSC targets* (*Compatible VHF required)
- Certified NMEA 2000® connectivity
Multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen, optically bonded for zero condensation and featuring transflective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other Simrad MFD’s and system components.
The IS42 is a smart multi-purpose instrument featuring a full colour display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.
Specifications
| Network Load |
3 LEN |
| Display Size |
4.1" (diagonal). 4:3 Aspect ratio |
| Display type |
Transmissive TFT-LCD, bonded. White LED backlight |
| Display resolution |
320 x 240 pixels |
| Illumination |
White for day mode. Red, green, blue or white for night mode |
| Waterproof rating |
IPX7 |
| Operating Temperature |
-15 to +55 C (5 F to +131 F) |
| Dimensions |
118 x 115 x 28mm (4.6 x 4.5 x 1.1?) |
