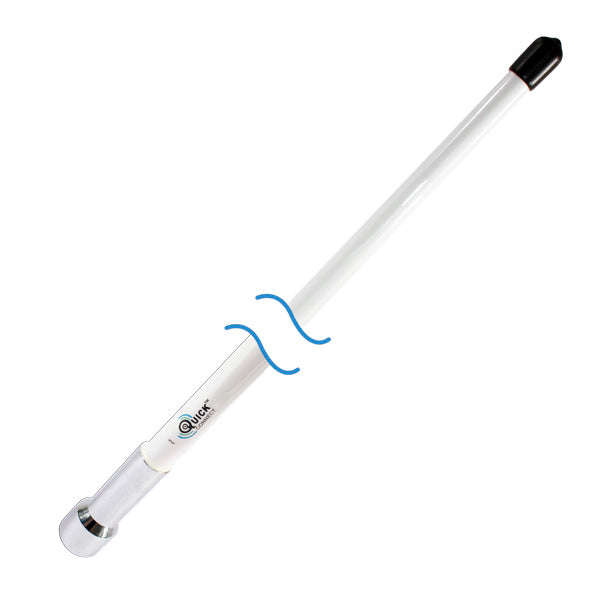

Shakespeare Quick Connect 4' White Fiberglass VHF Antenna - tubed
Model: QC-4T
UPC: 719441172992
- QuickConnect™ system, screw or unscrew antenna to disconnect or connect
- High quality connection so that no noise is generated due to vibrations
- Splash protection cap to protect the connector on the mount when antenna is disconnected
- Centerpin® PL-259 Connector is an easy crimp-on type connector
- Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount
Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the new QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.
Must use Quick Connect Series Mounts
Specifications
| Band |
Marine VHF |
| Antenna gain |
3db |
| Maximum input power |
50 watts |
| SWR |
Nominally 1.3:1 at 156.8 MHz |
| Bandwidth |
5 MHz within 2.0:1 VSWR |
| Ferrule |
Chrome-Plated Brass |
| Coax supplied |
None |
| Connector supplied |
None |
| Color/finish |
White Fiberglass |
| Polarity |
Vertical |
| Impedance |
50 Ohms (with QC Mount attached) |
| DC Ground |
No DC Ground — The antenna will read open on continuity test. |
