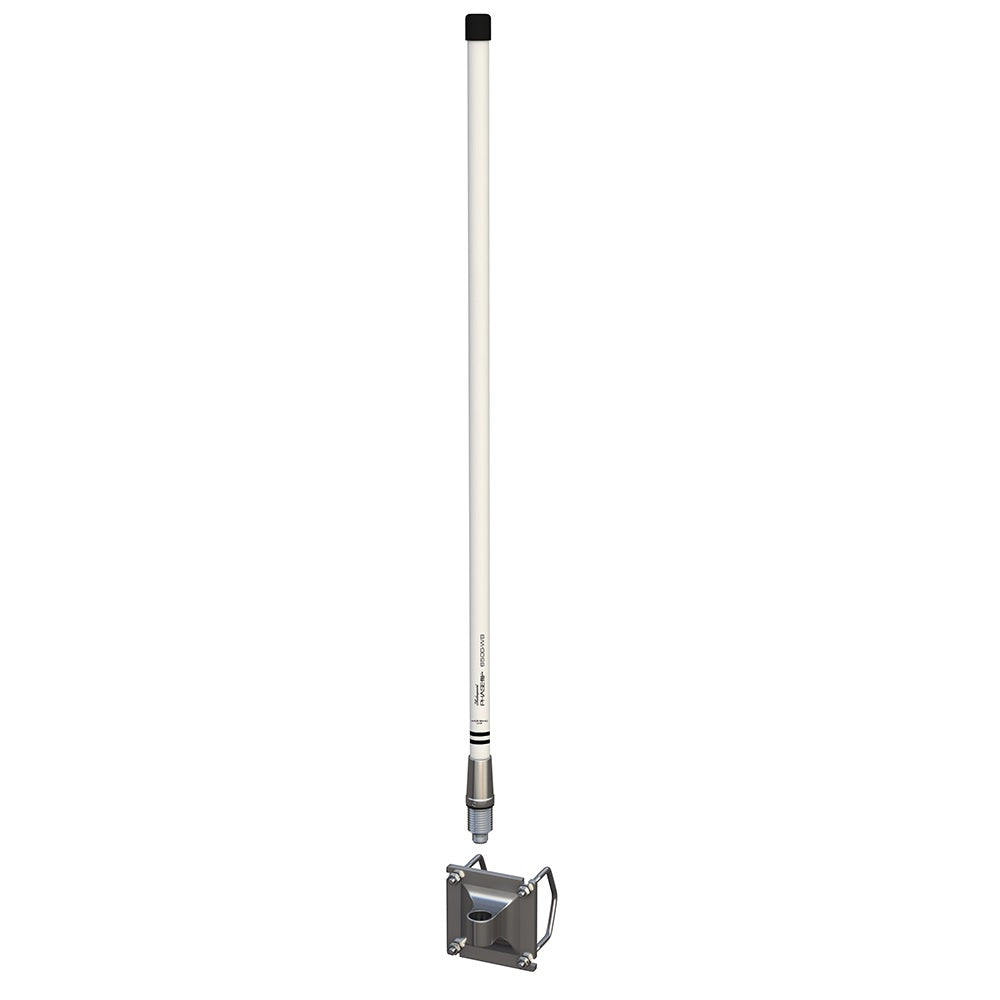

Shakespeare 6500-WB 4' Broad Band VHF Antenna
Model: 6500-WB
- Stainless steel mounting bracket: corrosion resistant even in marine environments. 3 mounting options
- Patent pending mount design: install the U-bolts without removing hardware — no more lost hardware
- Detachable antenna: handle mounting bracket easily without the weight of the antenna. Also, mount it on a large variety of Shakespeare® mounts with a 1"-14 thread*
- IP67**, high wind rating, wide temperature range, and PU Coating: built to last in rain, sun, ice, dust, water splashes and even corrosive marine environments
Built for maximum performance, this 4’ broad band antenna is designed to endure the harsh environment and communication requirements in commercial, law enforcement and disaster management applications. Whether you install it on a vessel, base station, or a stationary platform, this antenna provides a host of mounting options to fit your need. No tuning or ground plane required. Cable not included.
*Requires a Shakespeare 4006 double female ferrule (not included).
**When installed as instructed.
Specifications
| Frequency |
156-162 MHz, VSWR < 1.5:1
145-165 MHz, VSWR < 2: |
| Nominal Impedance |
50 Ohm |
| Input Power Rating |
100 Watts, continuous |
| Gain |
3dB |
| Polarization (Pattern) |
Vertical (Omnidirectional) |
| Connector |
UHF Female (SO-239 type) |
| Recommended Cable |
RG-8/U, RG-213/U or similar |
| DC Ground |
Yes |
| Wind Rating |
125 mph (55m/s) |
| Ingress Rating |
IP67** |
| Temperature Range |
-67° F to 160° F (-55° C to 71° C) |
| Finish |
White, high-gloss, non-yellowing polyurethane finish |
| Mounting |
Stainless steel mounting bracket with U-bolts, for mounting on mast, rails, or screwed directly onto bulkheads |
