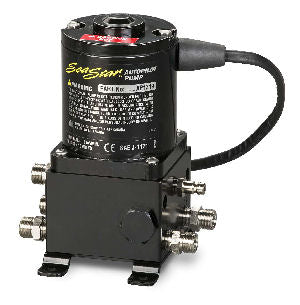

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
-
Long life DC Motor (i.e. long life brushes)
-
Compact design
-
Simplified installation
-
Low power consumption
-
ABYC, CE?s and J1171 compliant
-
Superior corrosion resistance
-
Quiet operation
-
All mounting bracket displacement included
|
|
|
|
| Voltage
|
| 12 volt
|
|
|
|
|
| Fittings
|
| Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF
|
|
|
|
|
| Wire Details
|
|
|
| Length
|
| 24"
|
| Gauge
|
| 12 awg
|
| Connector
|
| None - Bare Leads
|
|
|
|
|
| Oil Compatibility
|
| Seastar Steering Fluid (MIL 5606)
|
|
|
|
|
| Weight
|
| 4.9 lbs (2.2 kg)
|
|
|
|
|
| Pump Sizes
|
| Type 1: 60 in3/min (no-load)
|
| |
| Type 2: 100 in3/min (no-load)
|
|
|
|
|
| Maximum Pressure
|
| 1000 psi
|
|
|
|
|
| Typical Current Draw
|
| 12V Type 1: 4 ? 8 amps
|
| (Depending on Application)
|
| 12V Type 2: 5 ? 11 amps
|
|
|
|
|
|
|
|
|
|
|
| Ram Capacity
|
|
|
| Type 1
|
| 4.9 in3 - 14 in3
|
| Type 2
|
| 14 in3 - 21 in3
|
