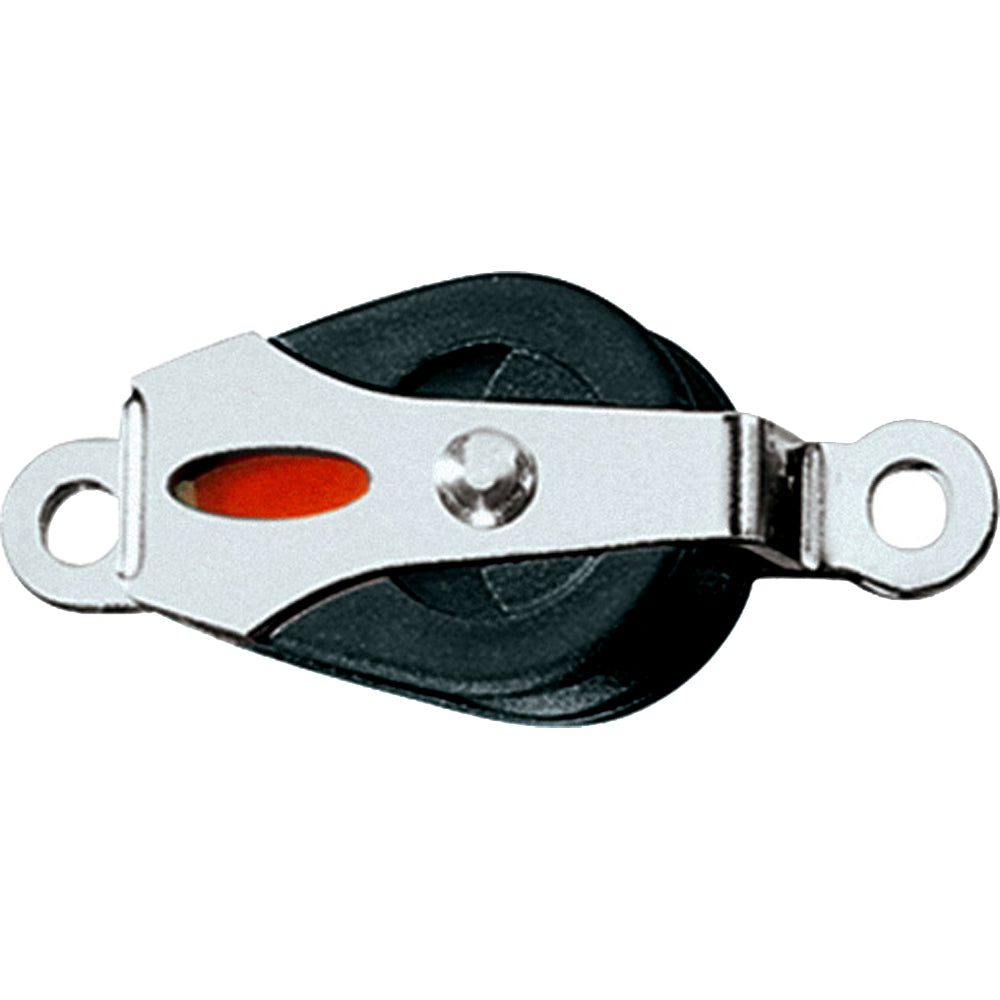

Ronstan Series 20 Ball Bearing Block Single Cheek Rivet Mount RF20151A

Ronstan Series 20 Ball Bearing Block - Single - Cheek Rivet Mount [RF20151A]

$22.87 $26.91
by Ronstan
Type: Blocks

Series 20 Ball Bearing Block - Single - Cheek Rivet Mount

Features:

  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Suitable for screw or pop rivet mounting
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction


Applications:
  • Dinghy control lines
  • Dinghy Vangs
  • Cunninghams
  • Traveller controls


Materials:
  • U.V. Stabilized Acetal sheaves
  • Stainless steel ball bearings
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 200kg(440lbs)
B. L.: 550kg(1,210lbs)
Weight: 17g(0.6oz)
