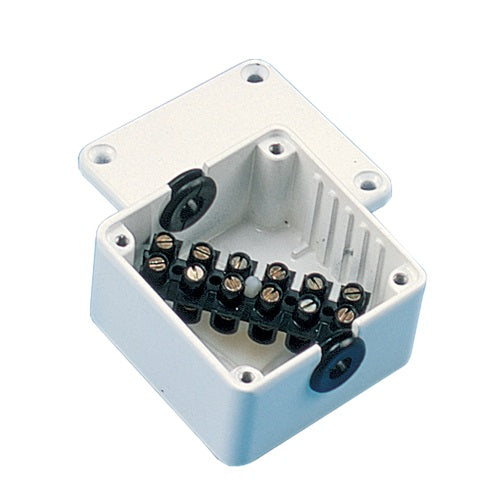

Newmar BX-1 Junction Box

$61.00
by Newmar

Newmar BX-1 Splash Proof Box

Model: BX-1
  • Provides for secure, protected wiring connections in wheel house or below decks and engine rooms. IP rating 54 — "Splashproof"
  • Rugged cast aluminum box with white enamel finish
  • Metal box reduces electrical interference
  • Easy wiring access through multiple grommeted cable entries
  • Supplied with high quality connector strips — secure wires with compression fittings — no terminals required — see matrix below for connector strips specifications per box
Specifications
Number of Connector Strips 1
Positions per Strip 6
Max Wire Gauge 16
Max Amps (per position) 6
Cable Entries 2
Cable Diameter .25in
Box Size (inches) 2 x 2 x 1.2
Box Size (cm) 5.1 x 5.1 x 3.1

What's in the Box:
  • Aluminum box
  • 6-Position Connector Strip
