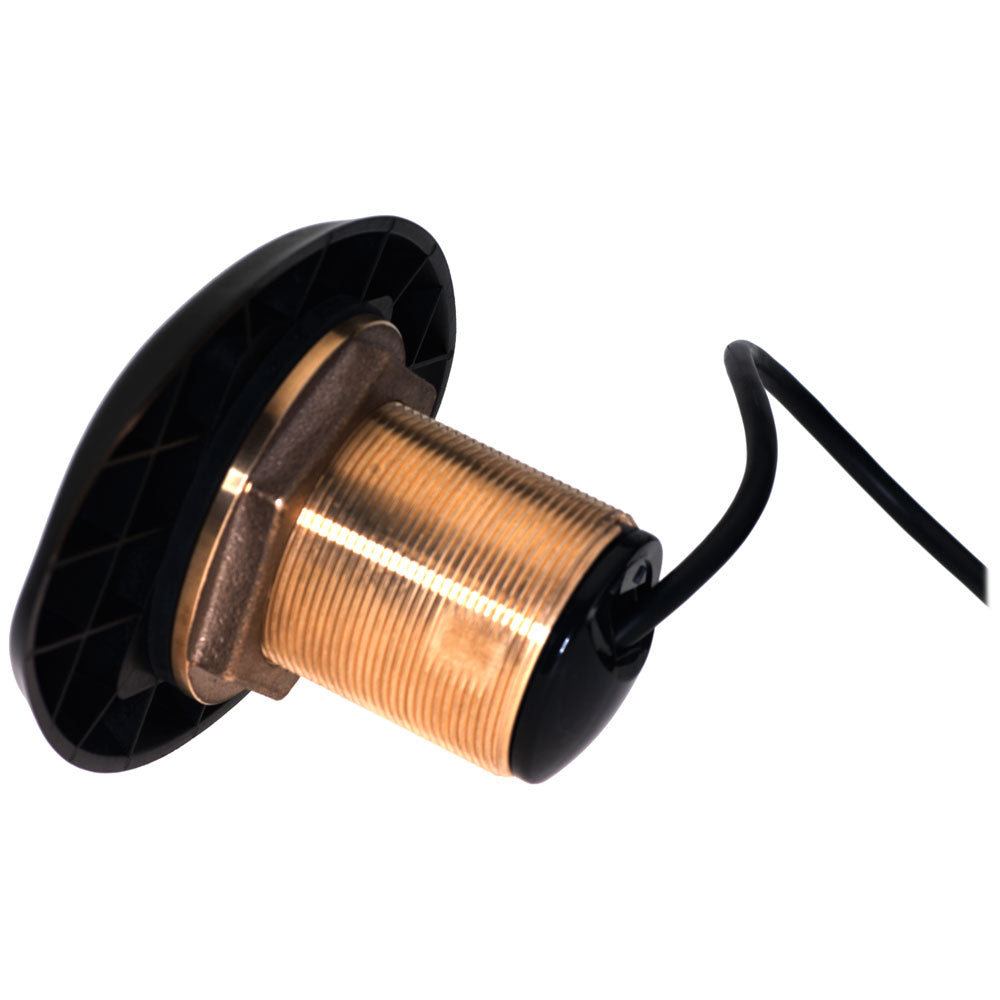

Navico xSonic Bronze HDI 12 Tilt 50/200 455/800 Thru Hull with 9 Pin Connector and 10M Cable [000-13906-001]

xSonic Bronze 12° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M Cable

Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer

• Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
• 12 degree tilt
• 10M Cable
• Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32°

Specifications:

• Temperature: Yes
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 33'
• Speed Included: No
• Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs
• UPC: 9420024162613
