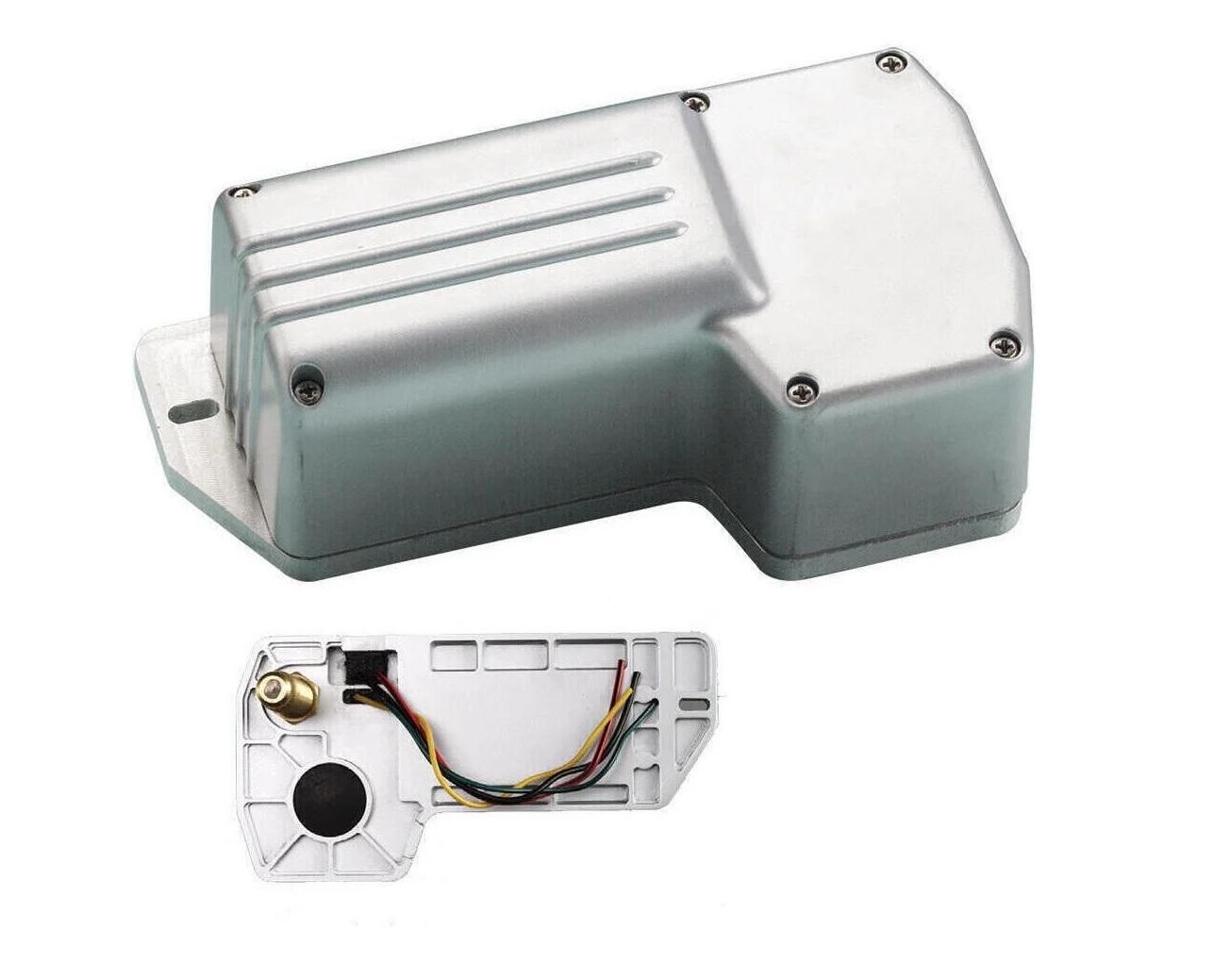

Marinco 71082 12V 1.5 Waterproof Wiper Motor with a 2.5in shaft and 80 degree Sweep
Model: 71082
- Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
- Two speed motor
- Sealed 6" wire leads, 16 AWG
- Adjustable right or left self parking
- Coast to park
- RF shielded circuitry
- Includes 5A fuse and holder (operating switch not included)
The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.
Specifications
| Stall torque |
109 in-lbs (125 kgf/cm; 12.3 Nm) |
| Stall current |
11.5 - 13.0A |
| No load current |
0.5 - 1.2A |
| Voltage |
12V |
| Fuse |
5A |
| Shaft diameter |
0.625" |
| Dimensions |
7.75" x 4" x 2.75" (L x W x D) |
