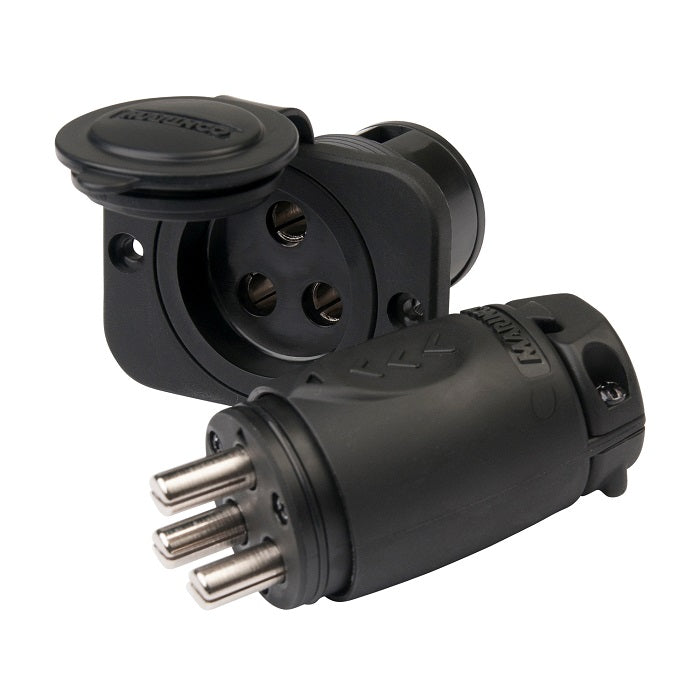

70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.
Plug |
Maximum Amperage |
70A (12V and 24V) 60A (36V and 48V |
Voltage |
12V, 24V, 12/24V, 36V, 24/36V, & 48V |
Wire |
2 or 3 |
Gender |
Male |
Terminals |
Double Set Screw w/ferrule |
Wire Size |
8AWG and 6AWG |
Receptacle |
Maximum Amperage |
70A (12V and 24V) 60A (36V and 48V |
VoltageVoltageVoltageVoltageVoltageVoltageVoltage |
12V, 24V, 12/24V, 36V, 24/36V, & 48V |
Wire |
2 or 3 |
Gender |
Female |
Terminals |
Double Set Screw w/ferrule |
Mounting Hole size |
1.75" |
Mounting Thickness |
1" Max |
Material Specifications |
Body |
Nylon |
Contacts |
Nickle Plated Brass |
Terminal Screws |
Nickle Plated Brass |
