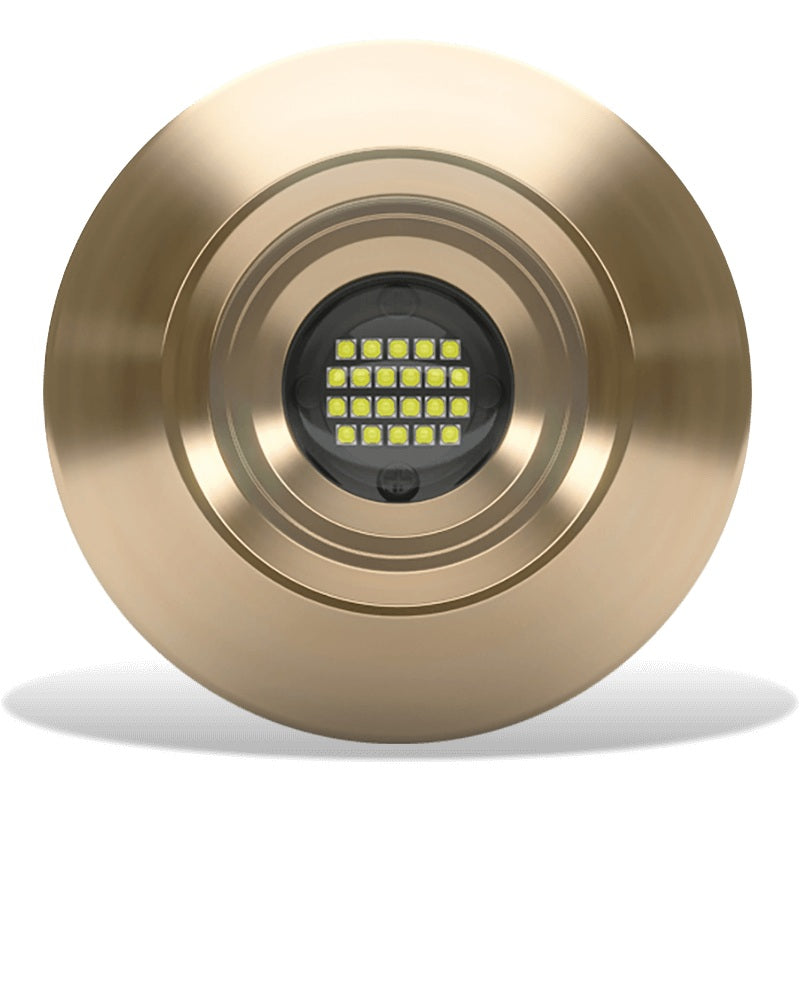

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Blue LED
Model: ORA TIX204 / 010-04523-00
The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.
Available in single color Blue, White or Green with a focused 60° beam angle.
TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
Specifications
| LED COLOR |
BLUE |
| LUMENS |
11,925 |
| VERIFIED FIXTURE LUMENS (WHITE) |
5,300 |
| NUMBER AND TYPE OF LED |
White - 11 x 10W High Power LEDs, Blue & Green — 22 x 3W High Power LED |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
60° |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW |
4.0A/1.9A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
ON/OFF SWITCH |
What's in the Box:- One (1) ORA TIX204 Light with Built-in Driver
