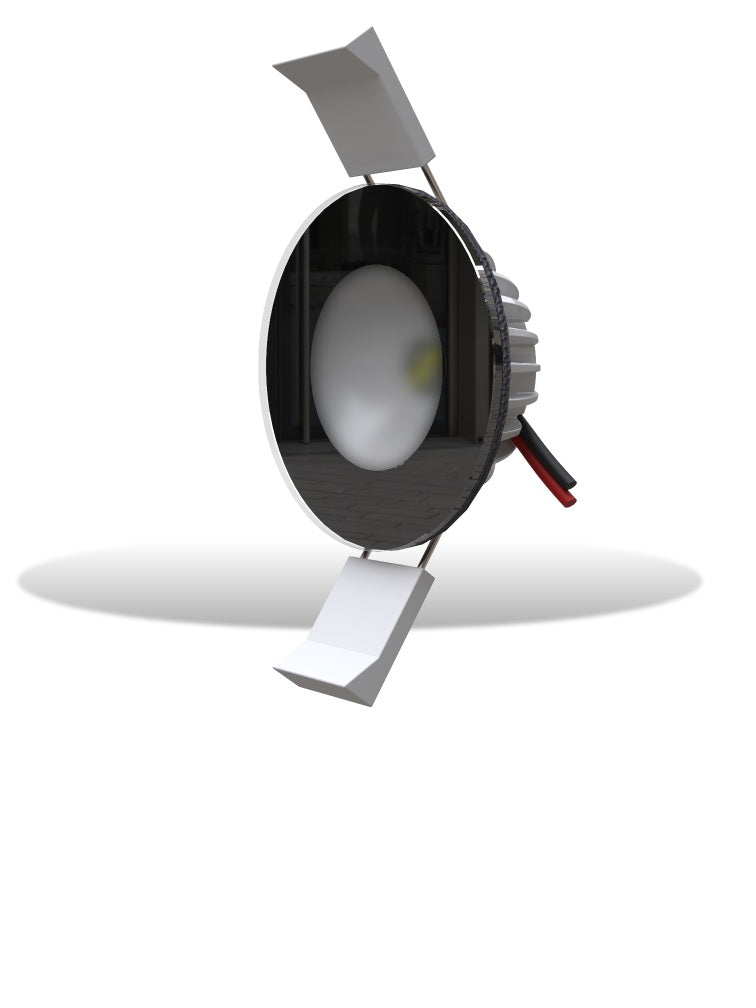

Lumishore Eclipse DL55 Downlight RGBW 12v Black Bezel
Model: Eclipse DL55 / 010-04541-00
Lumishore’s ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.
They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83").
Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat's aesthetic.
Specifications
| Available Colors |
White (5000k) + Red, Green, Blue |
| LED Type |
1 x 3W Red LEDs / 1 x 3W Blue LEDs / 1 x 3W Blue LEDs / 1 x 3W White LEDs |
| Customer Control Options |
On/Off Switch or ECLIPSE Command Center |
| Electrical Installation |
Simple 2 Wire Installation |
| Supply Voltage Range |
12V DC Only (10 - 15V DC) |
| Max Current Draw (12/24V DC) |
0.4A |
| Ingress Protection |
IP67 |
| Front Diamater (Bezel) |
64.0mm (2.519") |
| Profile (When Installed) |
3.00mm (0.118") |
| Hole Diameter for fitting |
50.8mm (2.0") |
| Mechanical Installation |
Stainless Steel Spring Clips Marine Adhesive (Optional) |
| Warranty |
3 Years |
