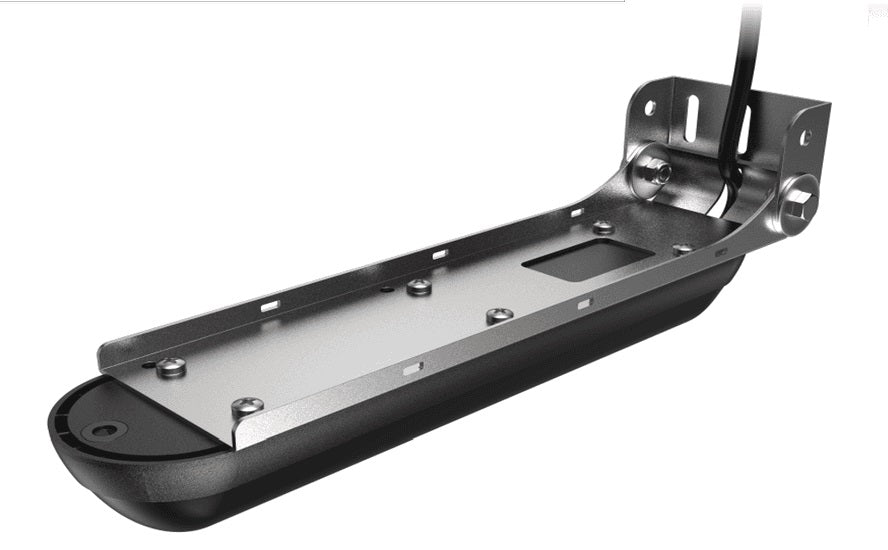

Active Imaging transducer: Provides Active Imaging technology for SideScan and DownScan: 7.6 m (25 ft) cable with 9 pin connector
Operating temperature |
-15°C to +55°C (+5°F to +131°F) |
Storage temperature |
-30°C to +70°C (-22°F to +158°F) |
Cable length |
7.6 m (25 ft) |
Mounting options |
Transom, flush step, and jackplate mounting |
Connector |
9 pin |
Output |
SideScan imaging, DownScan imaging and temperature |
Frequency |
455 kHz and 800 kHz |
Max depth |
DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz |
Operating speed |
DownScan and SideScan: 9 knots (10 mph) |
