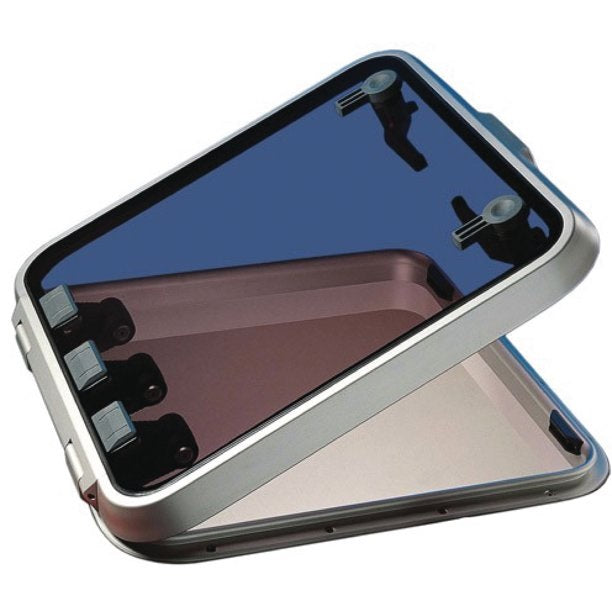

Lewmar Size 70 Ocean Series Hatch Flange Base

$1,961.95
by Lewmar
Type: Hatches Ocean Series
  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4").
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
1" Flange Smoke Grey 23.8 1/2

Dimensions

Length X (in) Width Y (in) Height Z (in) Radii R (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Length Flat X1 (in) Cut-Out Width Flat Y1 (in) Cut-Out Radii Flat R1 (in)
27 5/16 27 5/16 1 11/16 3 3/16 19 3/16 24 1/2 24 1/2 1 11/16
