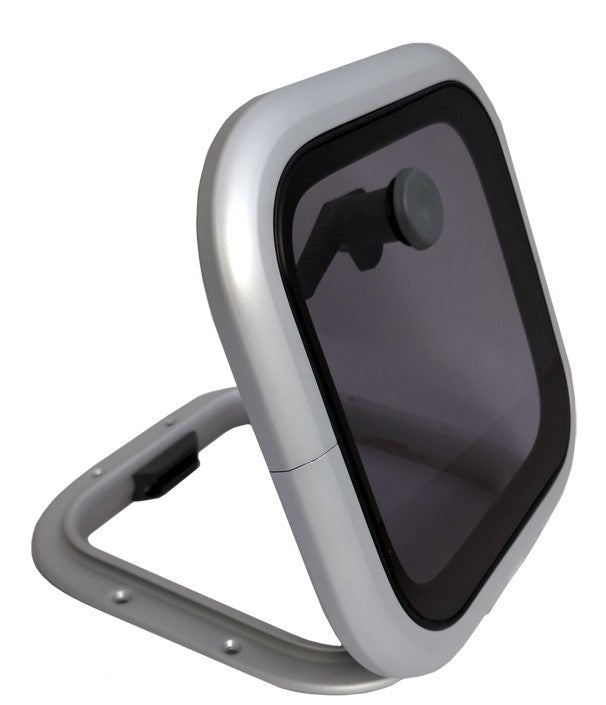

Lewmar Size 00 Low Profile Hatch Flange Base

$505.95
by Lewmar
Type: Hatches LP

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sail boats and the larger hatches can even be used as foredeck hatches on smaller to mid size yachts

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

  Specifications
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 3.5 5/16
  Dimensions
Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
11 1/16 11 1/16 1 2 7/8 8 5/16 8 5/16 1 11/16
