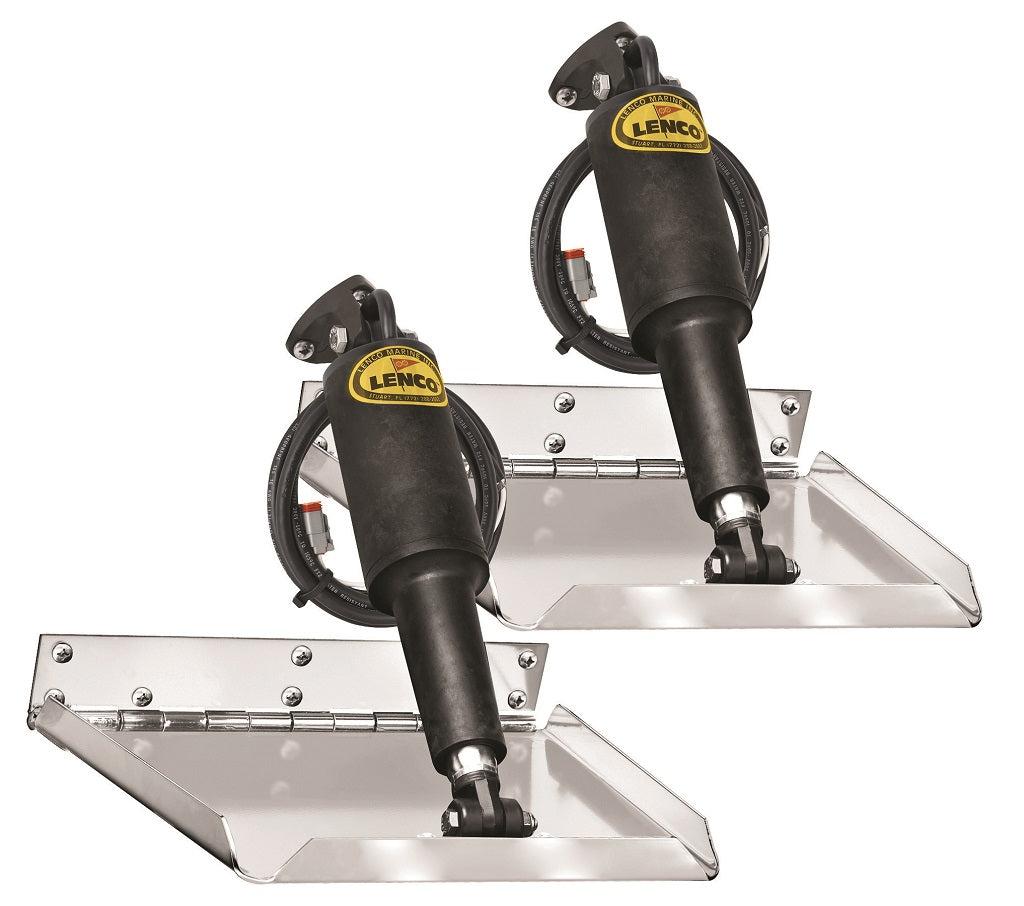

Lenco 9" X 12" Perfomance Trim Tab Kit - Requires Switch
Model: 15035-101
Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.
Specifications
| Plane Size L x W |
9" x 12" |
| Boat length |
16' - 26' |
| Hinge Height |
2" |
| Min Transom Height |
13.5" |
| Voltage |
12vDC |
| Finish |
Electro-Polish |
What's in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
