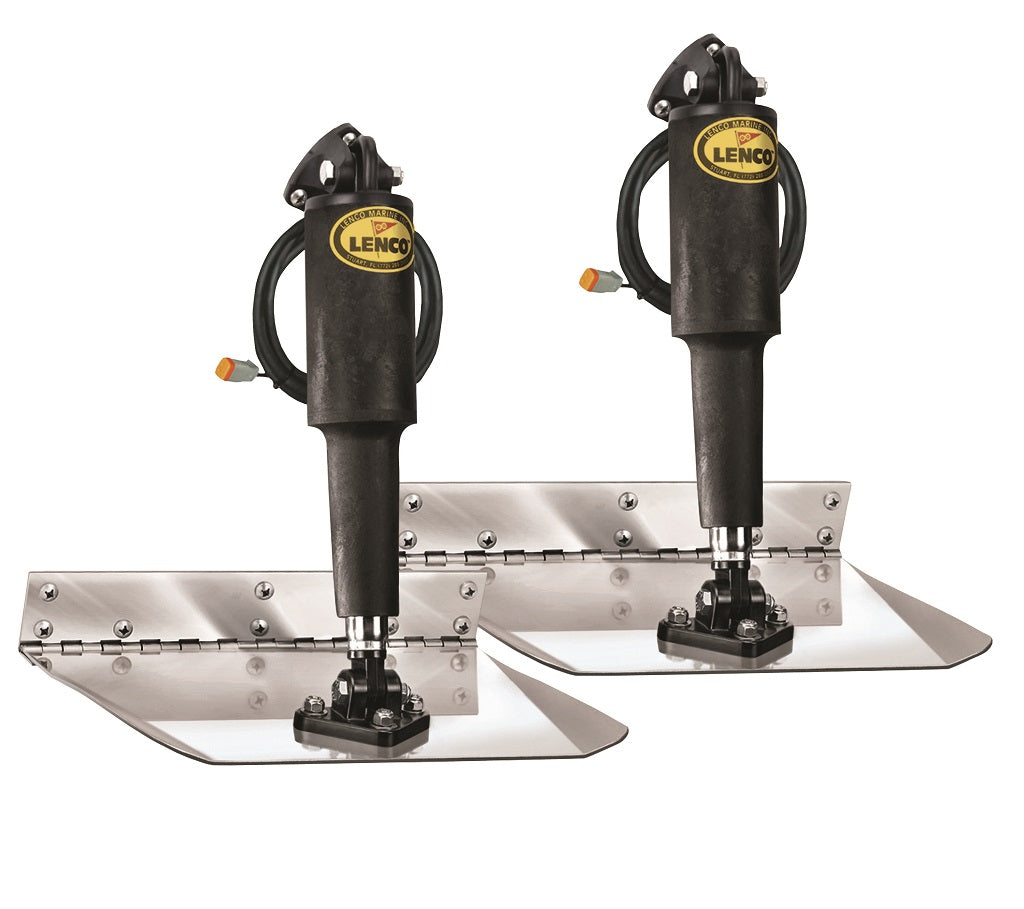

Lenco 12" X 12" Electro-Polish Standard Mount Trim Tab Kit
Model: 15114-101
All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m).
Specifications
| L" X W" |
12" X 12" |
| Boat Length |
17' - 30' |
| Hinge Height |
2" (5.1 cm) |
| Min Transom Height |
14" (35.6 cm) |
What's in the Box:
- (2) 12-gauge stainless steel Electro- Polished blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
