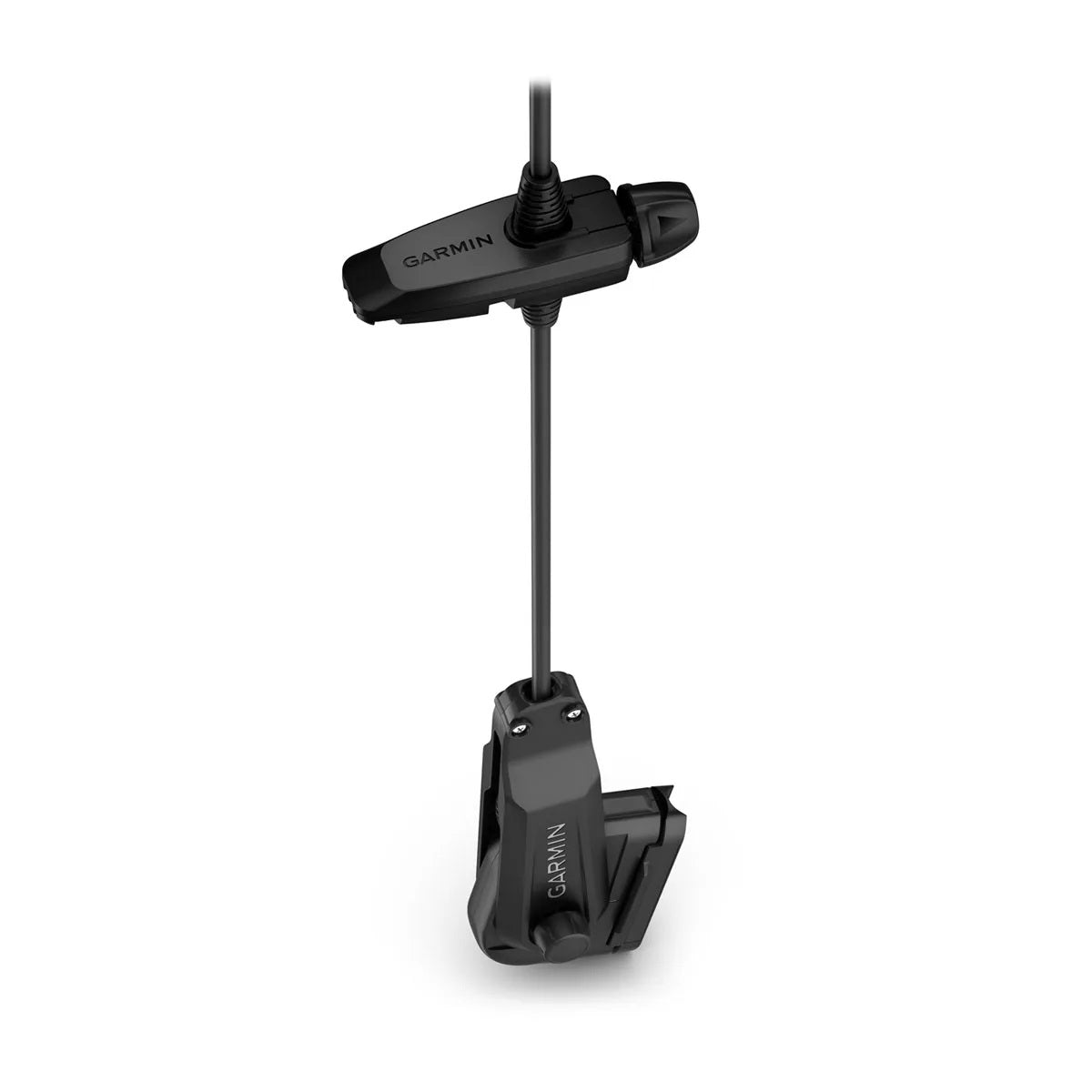

Garmin Panoptix™ PS22-IF Portable Live Sonar
Model: 010-01945-10
Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator — which eliminates the need for a bulky pole mount — as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVü™ Forward and LiveVü™ Down scan modes.
Specifications
| General |
| Transducer beamwidth |
With lens: 12° x 120°
Without lens: 57° x 120° |
| Transducer cable length |
9.8' (3 m) |
| Dimension |
9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm) |
| Weight |
2.60 lbs (1.18 kg) |
| Temperature range |
Operating: 0° C to 40° C |
| Electrical Features |
| Power input |
10-32 V |
| Fuse |
4A |
| Sonar Features |
| Frequency |
417 kHz |
| Transmit power |
48 W |
| Maximum depth |
300' |
| Connections |
| Garmin Marine Network Ports |
1 (standard connector) |
| Sonar Modes |
| LiveVü Down |
Yes |
| LiveVü Forward |
Yes |
| Traditional sonar source |
Yes |
What's in the Box:
- Panoptix PS22-IF transducer
- Transducer rotator and bracket
- Removable lens
- Hardware
- Documentation
