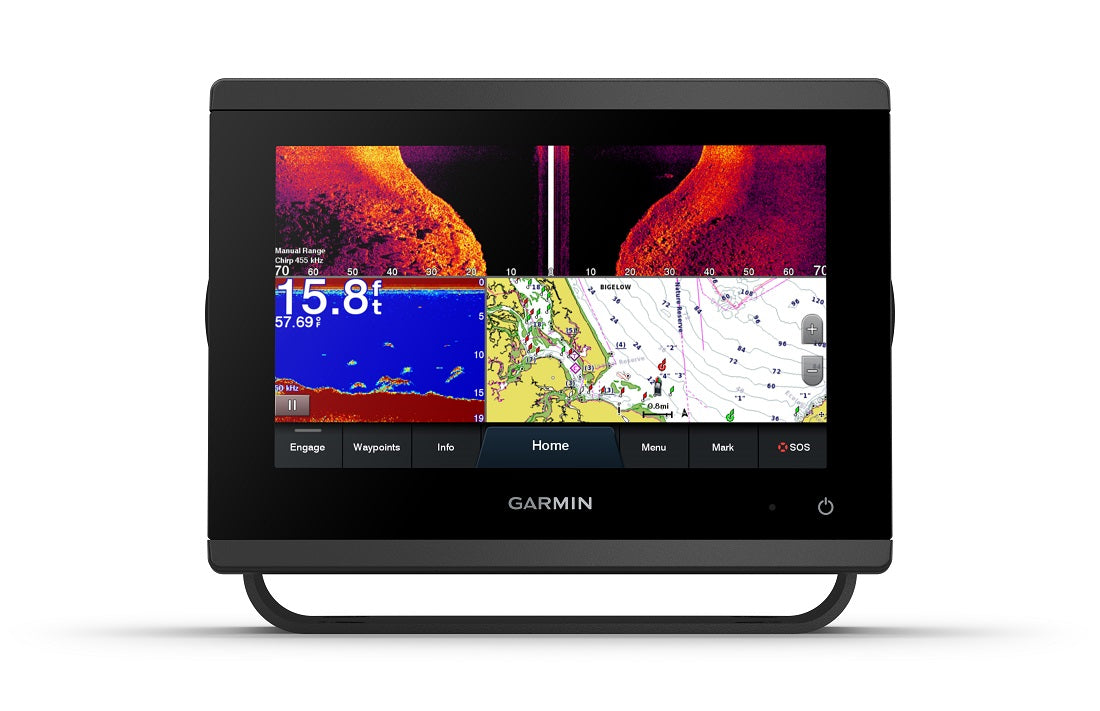

Garmin GPSMAP® 743xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping
Model: 010-02365-61
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded Garmin Navionics+™ charts and mapping.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere.
Get built-in Ultra High-Definition SideVü and ClearVü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.
New higher-resolution IPS displays for 9" and 12" plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.
Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.
Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more3.
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm, Garmin Quickdraw™ Community data and more4.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Specifications
| General |
| DIMENSION |
7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm) |
| DISPLAY SIZE |
6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION |
1024 x 600 pixels |
| DISPLAY TYPE |
WSVGA |
| WEIGHT |
2.8 lbs (1.3 kg) |
| WATER RATING |
IPX7 |
| Maps & Memory |
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
| WAYPOINTS |
5000 |
| TRACK POINTS |
50,000 |
| TRACKS |
50 saved tracks |
| NAVIGATION ROUTES |
100 |
| Sensors |
| HAS BUILT-IN RECEIVER |
Yes |
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE |
Yes |
| NMEA 0183 COMPATIBLE |
Yes |
| GPS |
Yes |
| GLONASS |
Yes |
| SUPPORTS WAAS |
Yes |
| Built-in Maps |
| BUILT-IN AUTO GUIDANCE+ |
Yes |
| GARMIN NAVIONICS+ INLAND & COASTAL |
Yes |
| TIDE TABLES |
Yes |
| Optional Map Support |
| GARMIN NAVIONICS+™ |
Yes |
| GARMIN NAVIONICS VISION+™ |
Yes |
| TOPO |
Yes |
| STANDARD MAPPING |
Yes |
| GARMIN QUICKDRAW CONTOURS |
Yes |
| RASTER CHART SUPPORT |
Yes |
| Chartplotter Features |
| SMART MODE COMPATIBLE |
Yes |
| AIS |
Yes |
| DSC |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD BLACK BOX SONAR SUPPORT |
Yes |
| GCV BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN® COMPATIBLE |
Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| SPOKEN AUDIO ALERTS |
Yes |
| ONEHELM SUPPORT |
Yes |
| Sonar Features & Specifications |
| DISPLAYS SONAR |
Yes |
| POWER OUTPUT |
1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) |
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVü |
built-in 260/455/800/1000/1200 kHz |
| SIDEVü |
built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR |
Yes |
| LIVESCOPE |
Yes |
| Connections |
| NMEA 2000 PORTS |
1 |
| CONNECTIONS NMEA0183 INPUT PORTS |
1 |
| VIDEO INPUT PORTS |
1 (BNC composite) |
| GARMIN MARINE NETWORK PORTS |
1 |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
What's in the Box:
- GPSMAP 743xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
