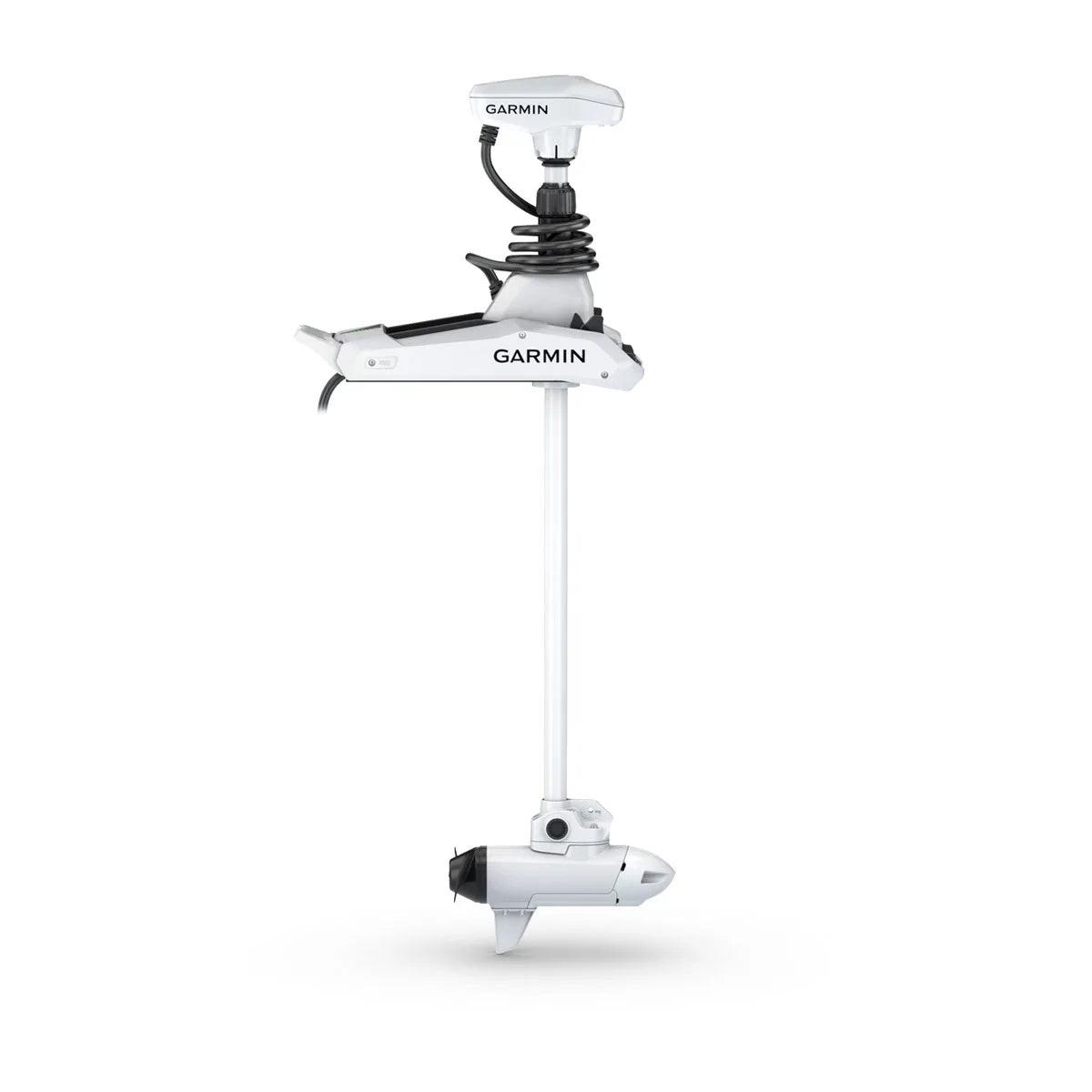

There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.
General |
COLOR |
white |
FOR USE IN |
freshwater, brackish water and saltwater |
MOUNT STYLE |
pivot-style mount |
MAX THRUST |
100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
VOLTAGE |
24V_36V |
ELECTRIC STEERING |
Yes |
BUILT-IN HEADING SENSOR |
Yes |
BUILT-IN GPS |
yes (dual frequency GPS) |
WARRANTY |
3-year, limited lifetime on shaft |
WATER RATING |
IPX7 |
MOUNTING LOCATION |
bow |
WIRELESS REMOTE |
yes (included) |
FOOT PEDAL COMPATIBLE |
yes |
BATTERY INDICATOR |
Yes |
VARIABLE SPEED CONTROL |
yes (20 steps) |
LIGHTED DIRECTION INDICATOR |
Yes |
DECK STABILIZER |
No |
QUATIX REMOTE CONTROL SUPPORTED |
Yes |
Sonar Features |
LIVESCOPE CABLE INTEGRATION |
yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
Autopilot Features |
ROUTE FOLLOWING |
Yes |
ANCHOR LOCK |
Yes |
ANCHOR LOCK JOG |
Yes |
HEADING HOLD |
Yes |
CRUISE CONTROL |
Yes |
GESTURE FEATURES |
yes (manual+, heading hold+, jog+) |
Foot Pedal Features |
DIMENSIONS |
12" L x 9" W x 4 1/2" H |
WIRELESS COMMUNICATION |
Yes |
POWER INSTALLATION |
12V/24V/36V wired or battery powered (2 AA) |
AA BATTERY LIFE |
1 full season |
WATER RATING |
IPX7 |
ADJUSTABLE PEDAL RESISTANCE |
Yes |
Remote Features |
DISPLAY SIZE |
1.2" (30.4 mm) diameter |
DISPLAY RESOLUTION |
240 x 240 pixels |
DISPLAY TYPE |
color, sunlight-visible, transflective memory-in-pixel (MIP) |
CHARTPLOTTER USER-PROGRAMMABLE KEYS |
Yes |
AUTOPILOT FEATURE CONTROL |
Yes |
WATER RATING |
IPX7 |
BATTERY LIFE |
typical use with backlight at low, 43 weeks |
FLOATS |
Yes |
