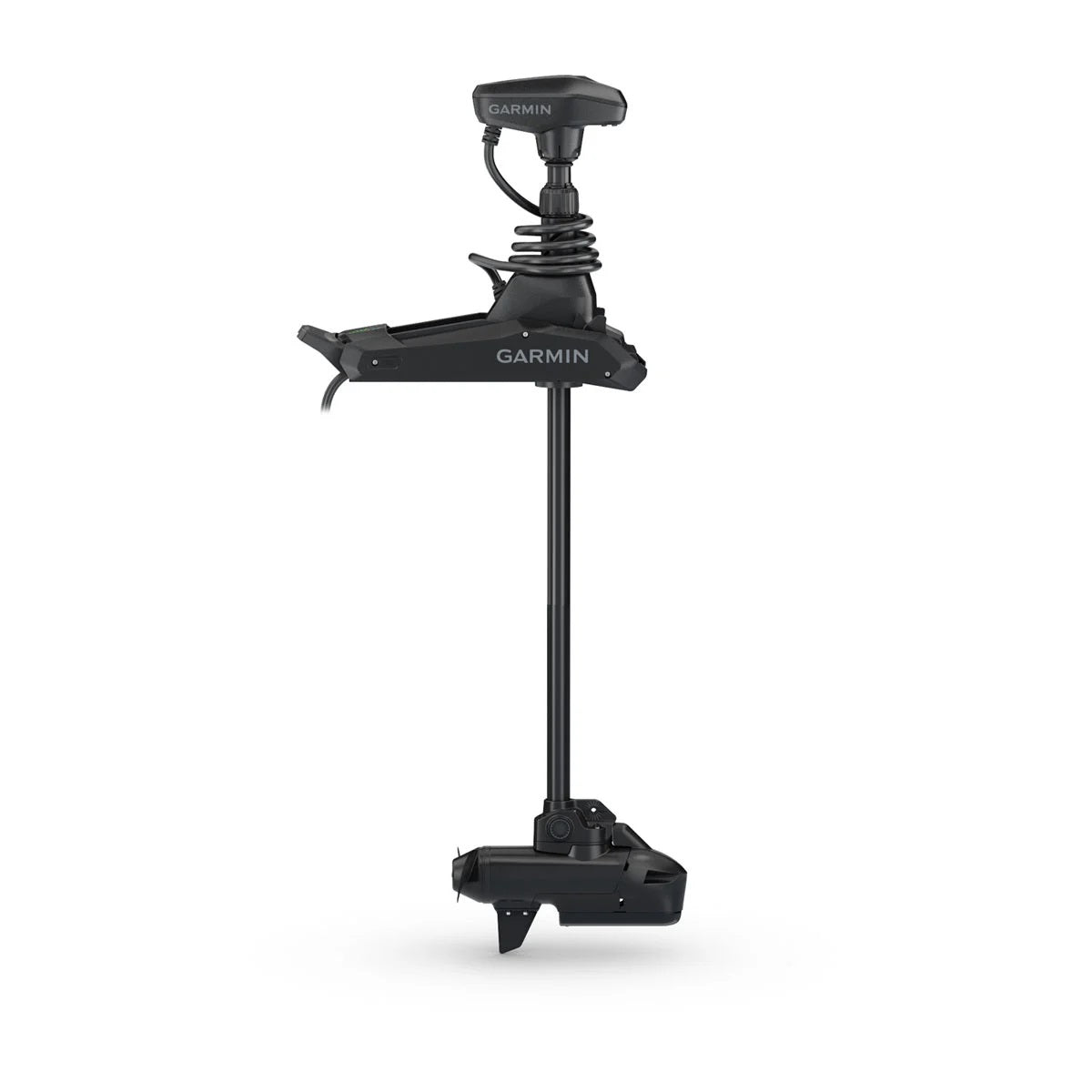

There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat.
General |
COLOR |
black |
FOR USE IN |
freshwater, brackish water and saltwater |
WATER RATING |
IPX7 |
MOUNTING LOCATION |
bow |
MOUNT STYLE |
pivot-style mount |
MAX THRUST |
100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
BUILT-IN HEADING SENSOR |
Yes |
BUILT-IN GPS |
Yes (dual frequency GPS) |
WARRANTY |
3-year, limited lifetime on shaft |
WIRELESS REMOTE |
Yes (included) |
FOOT PEDAL COMPATIBLE |
Yes |
BATTERY INDICATOR |
Yes |
VARIABLE SPEED CONTROL |
Yes (20 steps) |
LIGHTED DIRECTION INDICATOR |
Yes |
Sonar Features & Specifications |
FREQUENCIES SUPPORTED |
CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
MAXIMUM DEPTH |
CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
NUMBER OF PINS |
12-pin (orange connector) |
LIVESCOPE CABLE INTEGRATION |
Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
QUATIX REMOTE CONTROL SUPPORTED |
Yes |
