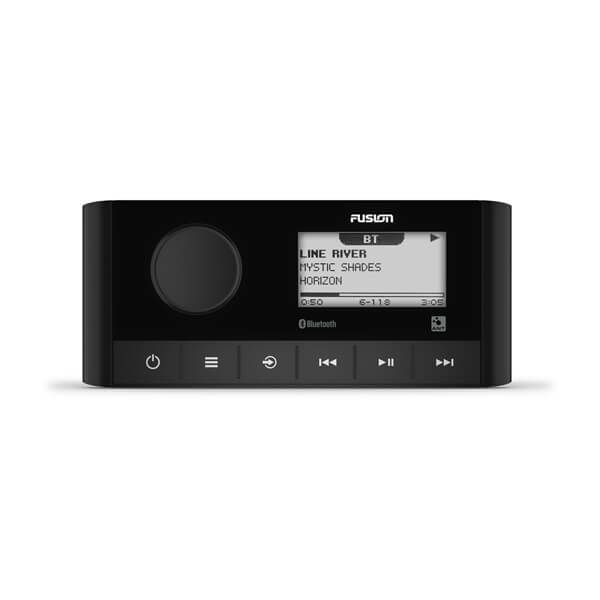

Fusion MS-RA60 Marine Stereo
Model: 010-02405-00
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Control your music from your compatible smart device or Garmin watch.
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.
Specifications
| General |
| Physical dimensions (H x W x D) |
2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) |
| Weight |
11.1 oz (316 g) |
| Water rating |
IPX6 and IPX7 (front panel only, when properly installed) |
| Power input |
10.8-16 VDC |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Current (max.) |
15 A |
| BLUETOOTH wireless range |
BLUETOOTH wireless range |
| ANT wireless range |
Up to 10 ft (3 m) |
| Wireless frequencies/protocols |
Bluetooth 2.4 GHz @ +12 dBm nominal |
| Compass-safe distance |
5.9" (150 mm) |
| Stereo Features |
| Display |
2.3" perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier |
Class-D (minimum 4 ohm impedance) |
| Peak power |
180 W |
| Rated power output (4 ohm) |
22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD |
| Fusion-Link™ control |
yes (with compatible Apple and Android devices) |
| Fusion-Link Lite control |
yes (with compatible Garmin watch) |
| Multi-Zone™ technology |
2 zones |
| BLUETOOTH wireless technology |
yes |
| ANT wireless technology |
yes |
| DAB+ |
yes (DAB tuner built in) |
| Multi-language interface |
Dutch/English/French/German/Italian/Spanish |
| Software updates |
Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app |
| Warranty |
1 year |
| Sources |
| Sources |
AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) |
| Connectivity |
| Auxiliary input |
One RCA input (AUX) |
| AM/FM radio |
One Motorola antenna connector port |
| Speaker |
4 x speaker connections (2 amplified zones) |
| 4 x speaker connections (2 amplified zones) |
1 zone (requires external amplification) |
| Line out |
Zone 1: L + R (requires external amplification) |
| Subwoofer out |
Zone 1 (requires external amplification) |
What's in the Box:
- Fusion MS-RA60 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
