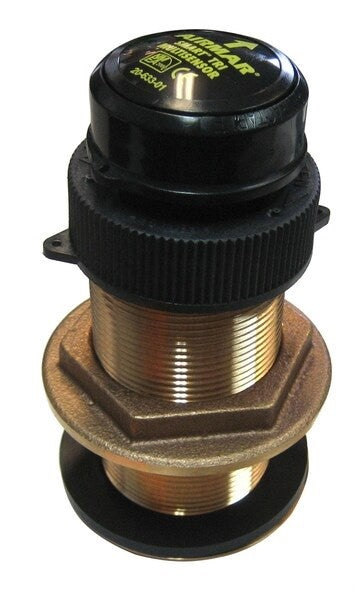

Furuno DT-800MSF Depth and temperature in one compact bronze housing
Model: DT-800MSF
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Acoustic Window: Urethane
Designed with Airmar’s exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4’) of water and can reach depths up to 180 m (600’).
Specifications
| Weight |
1.5 kg (3.4 lb) |
| Data Update Rate |
1 per second |
| Minimum Sounding Depth |
0.5 m (1.6’) |
| Maximum Sounding Depth |
180 m (590’) |
| Pressure Rating |
3 m (10’) |
| Pulse Rate |
20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Smart Sensor Supply Voltage at 100% Sound Power Output |
10 VDC to 25 VDC |
| Supply Current |
40 mA S |
| tandard Cable Length |
6m |
| NMEA 2000® Load Equivalency Number (LEN) |
4 |
