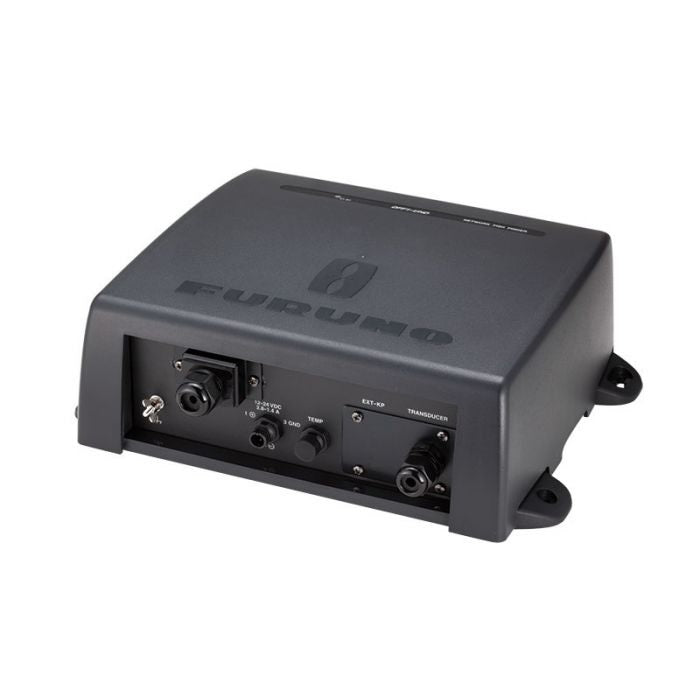

Furuno DFF3-UHD High-Power TruEcho CHIRP Black Box Fish Finder for NavNet TZouch3 and NavNet TZtouch2 TZT2BB w/5M LAN Cable, Less Transducer
Model: DFF3-UHD
- 2 kW or 3 kW Power Output
- Transmits across Low, Medium, and High CHIRP frequency ranges
- High Power = greater resolution and depth capability at all ranges
- Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
- Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
- Find and catch more of your target species, game fish and baitfish, even when they're tightly schooled or near the seafloor
- A-Scope feature and programmable Fish, Depth, or Temp Alarms
- Enhanced automatic cruising or fishing modes to suit your style of boating
The DFF3-UHD High Power TruEcho CHIRP™ Fish Finder for NavNet TZtouch3 delivers the ability to see fish and bottom structure deeper and clearer than ever before. Furuno’s superior digital signal processing interprets echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution, at unprecedented depths - we’re talking maximum depth scales down to 15,000 feet!
Specifications
| TX Type |
Dual Band CHIRP and CW |
| Output Power |
CHIRP: Max. 3 kW
CW: 2/3 kW |
| Max. Range Scale |
15,000 ft |
| Frequency |
25 to 242 kHz |
| BT-5 for 5/10 kHz CW Transducer |
Compatible |
| Interconnection |
Connect to MFD Network via Ethernet |
| Networked MFDs |
NavNet TZtouch3 (v3+ software)
NavNet TZT2BB (v9+ software) |
| Power Supply |
12-24 VDC |
| Power Consumption |
3.0-1.6 A |
| Protection Level |
IP55 |
| Dimensions |
15 x 4.72 x 11.78 in |
| Weight |
7.94 lbs |
What's in the Box:
- DFF3-UHD Network Fish Finder
- 000-197-092-10 Cable FRU-3P-FF-A002M-001
- 001-167-890-10 LAN Cable
- 000-162-608-10 Self-Tapping Screw 5x20 x 4
- 000-199-317-10 EMI Core GRFC-8
- IME-204-10Z Installation Manual
