Egis XD Flex 1 Single RelayACR wo Knob 6Pin DTM Connector 88101200

Egis XD Flex 1 Single Relay/ACR w/o Knob - 6-Pin DTM Connector [8810-1200]

$177.70
by Egis Mobile Electric
Type: Accessories

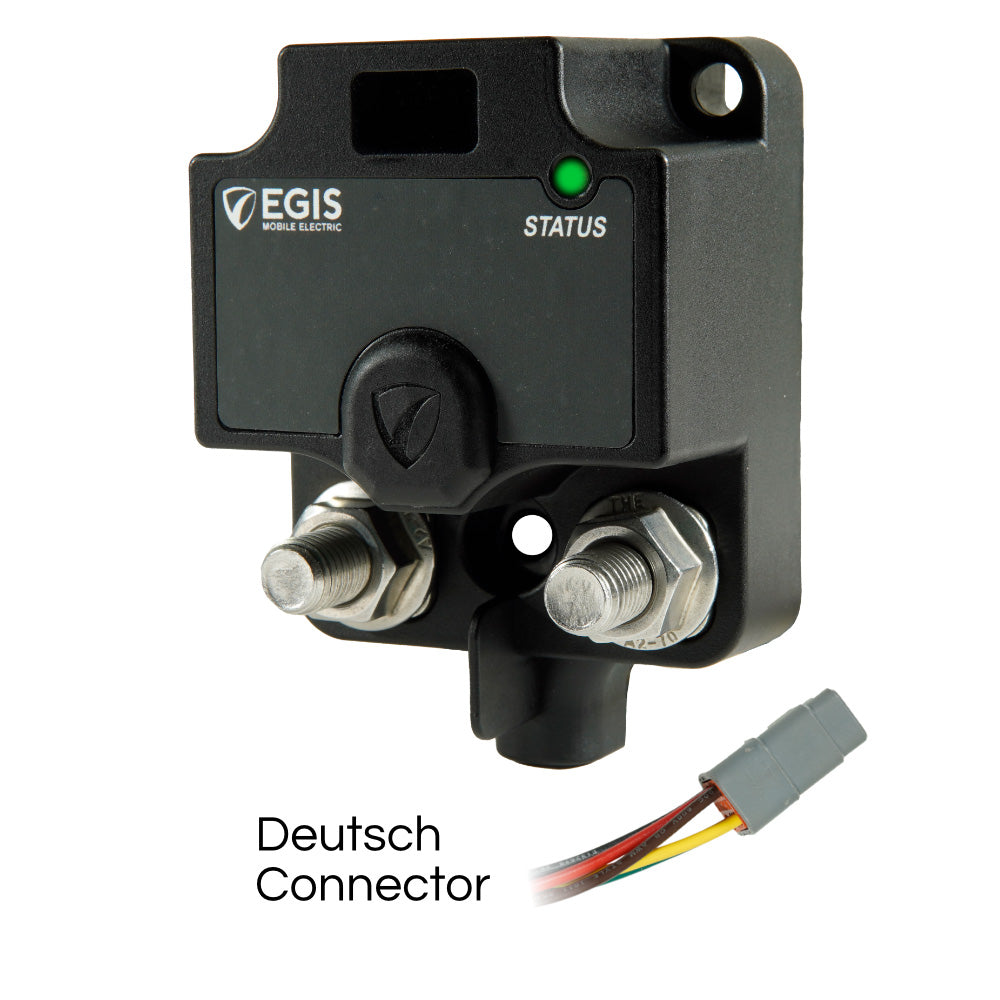

XD Flex 1 Single Relay/ACR without Knob - 6-Pin DTM Connector

Features:

  • 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
  • Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
  • Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
  • Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
  • Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
  • Local and Remote LED Indicators for Each Relay

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs
  • UPC: 850035199824
