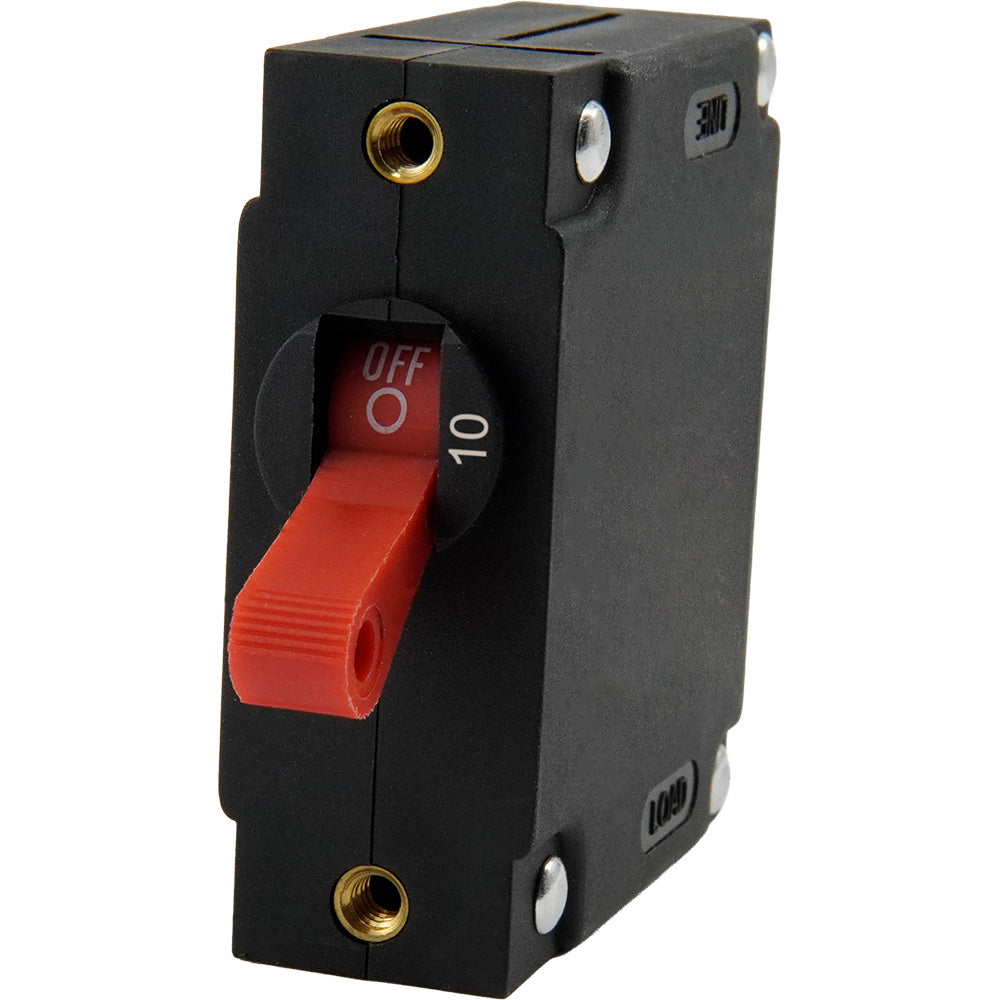

Egis A Series Red Toggle Panel Mount Circuit Breaker Single Pole 10A 322110

Egis A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 10A [3221-10]

$19.50
by Egis Mobile Electric
Type: Accessories

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 10A

Features:

  • Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
  • AC & DC Rated to cover a wide range of system application needs.
  • Toggle-Style Actuator for easy on/off switching control, combined with circuit protection.
  • High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
  • High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
  • Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots.

Specifications:

  • Amperage: 10a
  • Type: Electric
  • Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs
  • UPC: 850074331018

Brochure (pdf)
