EGIS 2411 e-Series 350A Dual Circuit with Combine Battery Switch

$67.10
by Egis Mobile Electronics
Type: Battery - Switch

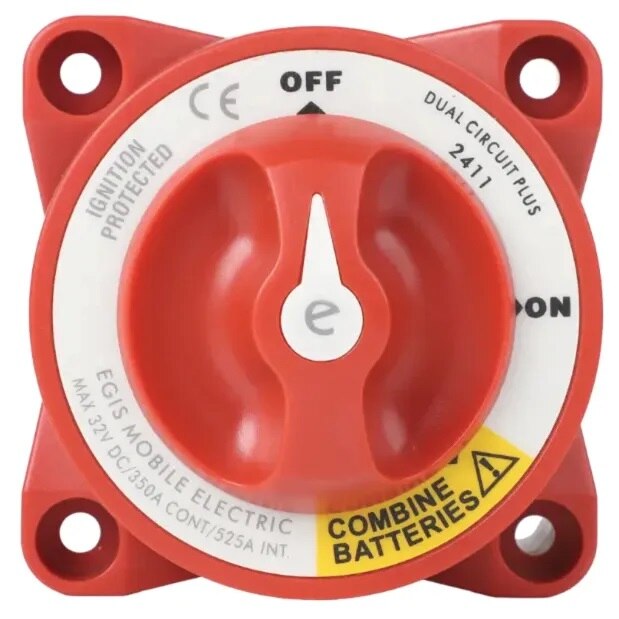

EGIS e-Series 350A Dual Circuit with Combine Battery Switch

Model: 2411
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
  • Ignition Protected
  • Safe for installation in closed compartments with potential explosive gases.
  • Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
  • Flexible Mounting Options allow for multiple mounting con?gurations and a variety of installation types.
  • Harsh Environment Design with stainless-steel hardware, serrated ?ange nuts, and high temperature materials.
  • Simple Batiery Control Operation allows connecting, isolating, and combining of up to two batieries with one switch.
Specifications
Maximum Voltage (Single Circuit) 48V DC
Maximum Voltage (Selector / Dual Circuit) 32V DC
Stud/Thread Size 3/8"-16
Terminal Stud Torque 140 in-lbs (15.8 N-m)
Ring Terminal Size Acceptance 3/8" (M10)
Amperage Rating 350A
