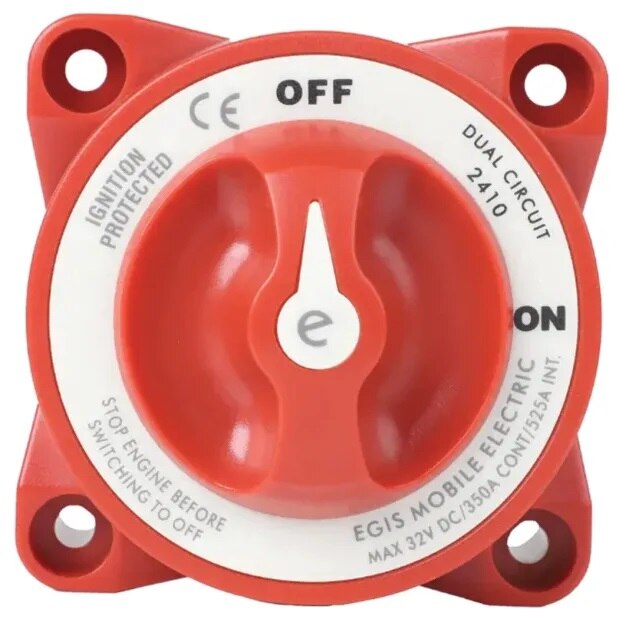

EGIS 2410 e-Series 350A Dual Circuit Battery Switch Off/On

$67.10
by Egis Mobile Electronics
Type: Battery - Switch

EGIS e-Series 350A Dual Circuit Battery Switch Off/On

Model: 2410


  • Ignition Protected
  • Flexible Mounting Options
  • 4 Year Leading Warranty
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
  • Safe for installation in closed compartments with potential explosive gases.
  • Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
  • Isolates Electrical Loads from batieries when electrical system is not in use, ensuring current draw from load side of switches is eliminated.



Specifications


Maximum Voltage (Single Circuit) 48V DC
Maximum Voltage (Selector / Dual Circuit) 32V DC
Stud/Thread Size 3/8"-16
Ring Terminal Size Acceptance 3/8" (M10)
Mounting Holes 1/4" (M6) Screw
Panel/Bulkhead Mount Hole Size 3-5/8" Diameter
