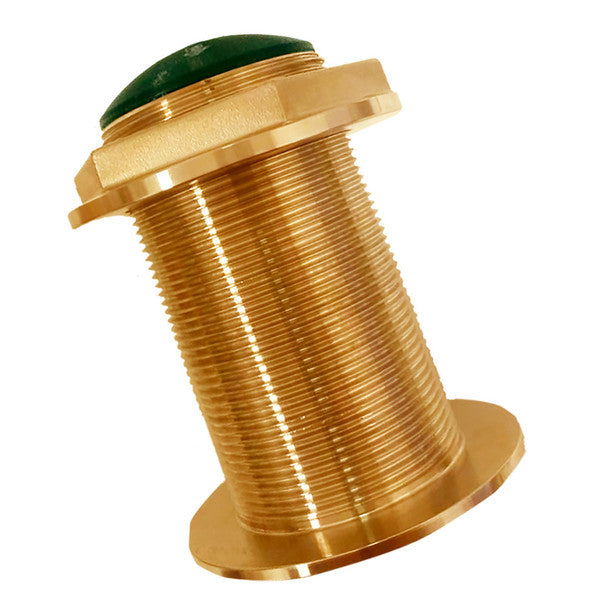

Echonautics BT70MA600-12 600w 80-130kHz Medium CHIRP 12d Tilted Element Bronze TH

$679.00
by Echonautics
Type: Transducer - Thru Hull

Echonautics BT70MA600 80-130kHz Medium CHIRP 600watts 12° Tilted Element

Model: BT70MA600-12

A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.

Designed to minimize drag and to perform at high speeds

Specifications
Function Depth and Temperature
frequency CHIRP 80-130kHz
Mount style Thru Hull
Tilt/deadrise 12° tilted element ; for 8° to 15° hull deadrise
Material Bronze
RMS Power 600 watts
Beamwidth 24° to 17° @3db
Depth max 900ft
Temperature sensor NTC
Accoustic window Urethane
Cable length 27ft
Hole diameter 2.38 in
