Echonautics BT70D600CW-12 600w 50/200kHz 12d Tilted Element Bronze TH

$295.00
by Echonautics
Type: Transducer - Thru Hull

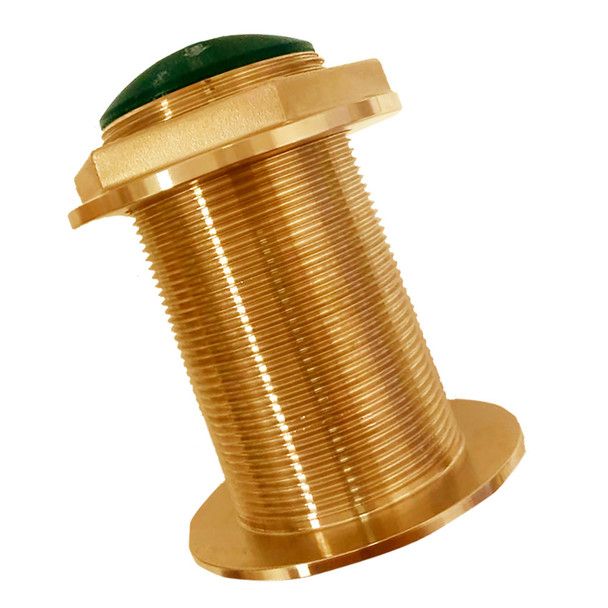

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 12 degree Tilted Element

Model: BT70D600-12

Get target detail in shallow water and good deep-water botoom tracking.

this series is designed to minimiz drag and to perform at high speeds.

Specifications
Function Depth and temperature
Frequency 50/200kHz
Mount type Thru-hull
Tilt/deadrise 12° tilte for 8° to 15° hull deadrises
Material Bronze
RMS Power 600 watts
Beamwidth 42° / 11° -3db
Depth Max@50kHz = 1200ft
Max at 200kHz = 700ft
Temp sensor NTC
Acoustic window Urethane
Weight 54oz
Cable length 27ft
Hole diameter 2.38"
