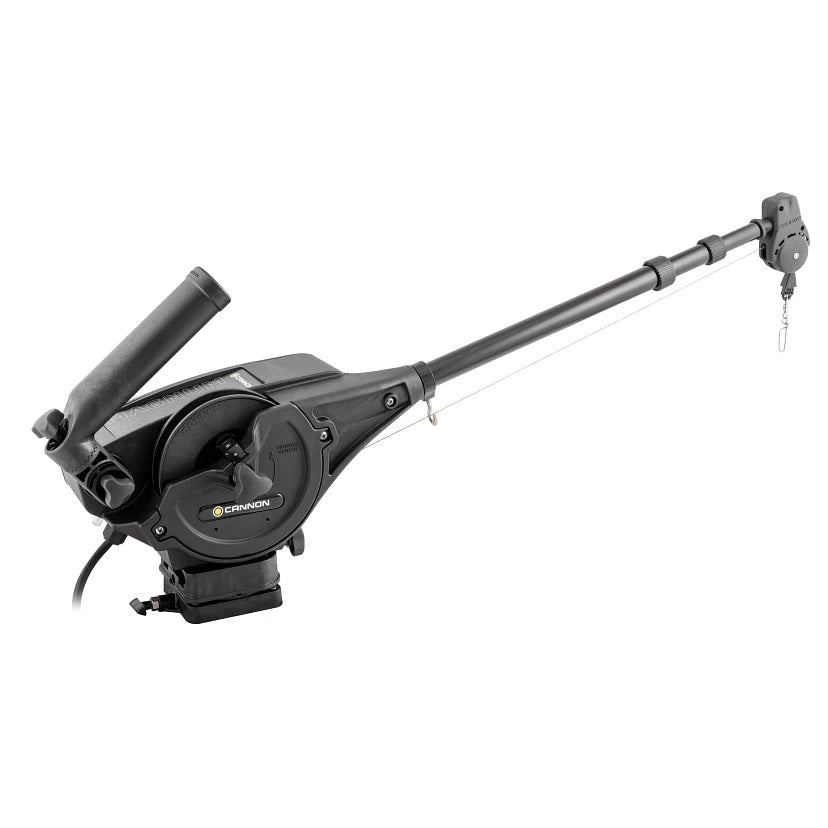

Cannon Magnum 10 Electric Downrigger
Model: 1902305
- Auto Up - Flip the up/down switch and your Magnum automatically retrieves your weight, stopping at the water line.
- Three-Digit Depth Counter - Always know exactly where your weights are with the easy to read three-digit depth counter.
- Short-Stop - When retrieving a weight, your downrigger will automatically stop it at the waterline. This eliminates cable strain caused by bouncing, stops the weight from hitting the boom end, and prevents weights from hitting the hull.
- Positive Ion Control (PIC) - Your boat’s electronics create a fish-repelling negative energy field in the water. Positive Ion Control neutralizes the negative energy field so fish will stick closer to your line.
- Fast Retrieval Rate - 250 feet-per-minute weight retrieval rate.
- Stainless Steel Telescopic Boom - Extends from 24" to 53".
- Composite Spool - Comes pre-spooled with 250' of 150 lb of stainless steel cable.
- Dual Axis Rod Holder - Includes one (1) rear mount rod holder
- Removable Side Plate - Easily access the spool to switch lines, fix snags and make adjustments.
Seriously tough. Seriously powerful. Magnum 10 is the go-to downrigger for serious anglers for exactly these reasons. Its ruggedness and reliability have been proven on the water, year after year. But smart anglers know Magnum 10 has a sophisticated side too.
Specifications
| Operation (Type) |
Electric |
| Boom Length |
24 in - 53 in Telescopic |
| Boom Material |
Stainless Steel |
| Spool Material |
Composite |
| Line On Spool |
250 ft / 150 lb Stainless Steel Cable |
| Retrieval Speed |
250' Per Minute |
| Mounting Base |
Base Low-Profile Swivel Base |
| Rod Holders |
1 - Dual Axis Adjustable |
| Weight Capactity |
20 lb |
| Depth Counter |
Analog |
| Control Method |
Switch |
| Positive Ion Control |
Yes |
| One-Boat Network Ready |
No |
| Wireless Connectivity |
No |
| Mobile App |
No |
| Full-Color LCD Screen |
No |
| Short Stop |
Yes |
| Soft Stop |
No |
| Depth Cycling |
No |
| Preset Depth Storage |
No |
| Bottom Tracking Compatible |
No |
| Adjustable Speeds |
No |
| Waterline Zero |
No |
| Auto Up |
Yes |
| Removable Side Plate |
Yes |
| Trolling Weight Storage Hook |
Yes |
| Enclosed Boom End |
Yes |
| Warranty |
Limited Lifetime |
| Input Voltage |
12 Volt |
What's in the Box:
- Magnum 10 Electric Downrigger
- Universal Mounting Base
- Low-Profile Swivel Base
- Line terminator
- One (1) Uni-line release
- Manual crank handle
