Blue Sea Terminal Block 30A 12 Circuit

$16.69
by Blue Sea Systems
Type: Installation Accesories

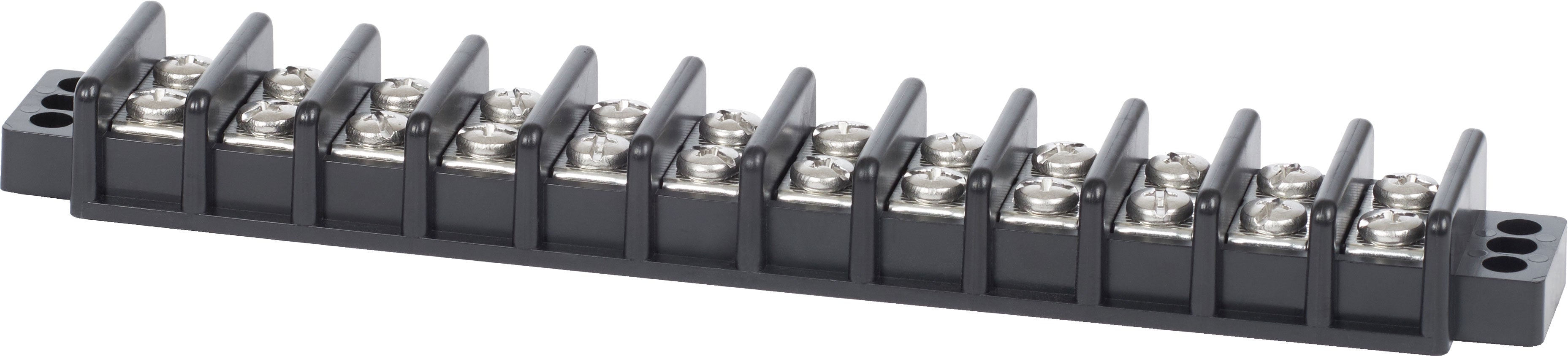

Blue Sea Systems Terminal Block 30A - 12 Circuit

Model: 2512-BSS
  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 12
Length 7.75in (196.85 mm)
Maximum Voltage 600V AC/DC
Continuous Rating 30A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Terminal Torque 10 in-lb (1.13 Nm)
Terminal Screws M4
Wire Terminal Size #8 [M4]
