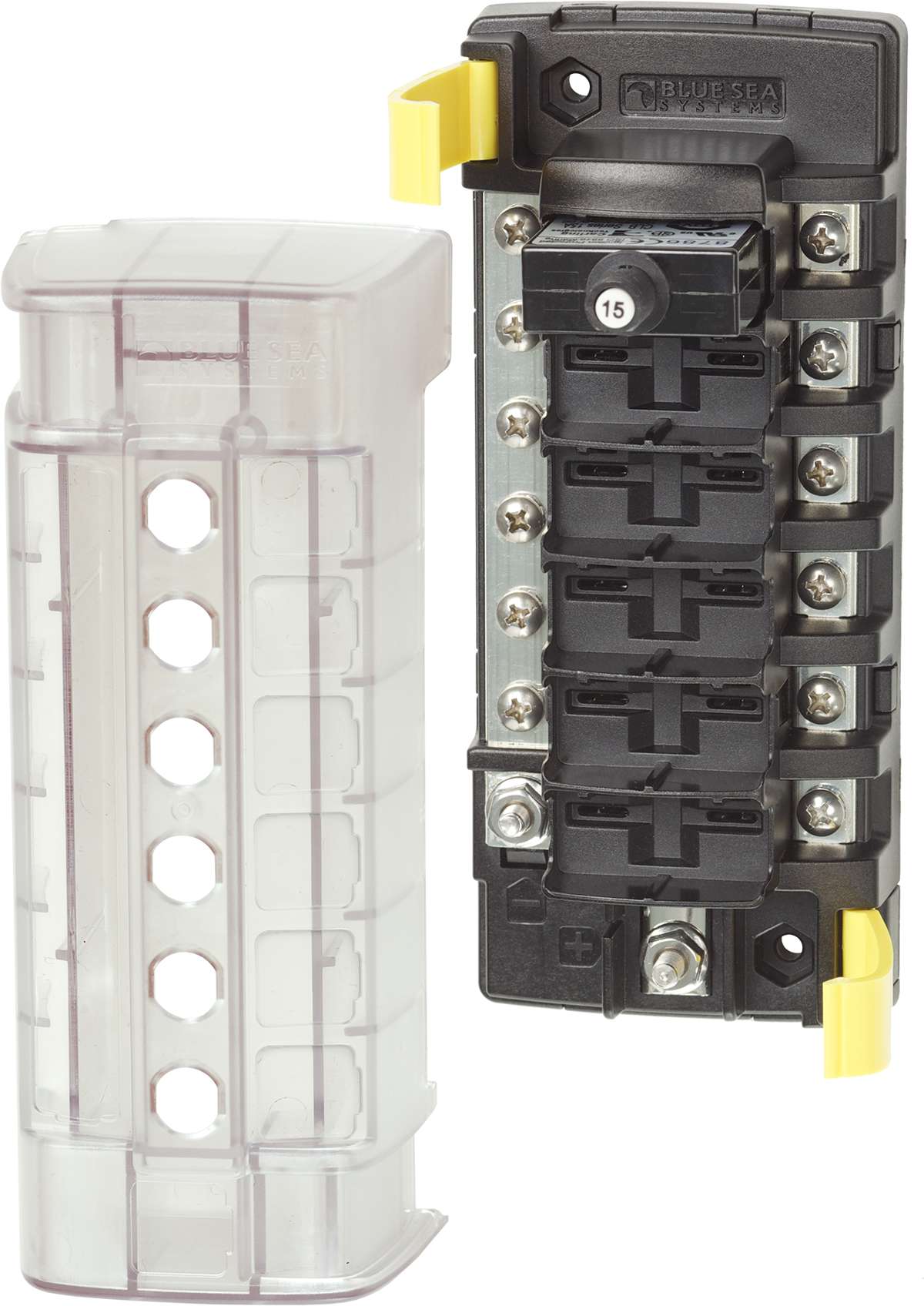

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus
Model: 5052-BSS
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Specifications
| Circuits |
6 |
| Maximum Amperage |
100A (per block)
32A (per circuit) |
| Maximum Voltage |
32V DC |
| Negative Bus |
#10-32 Stud |
| Positive Bus |
#10-32 Stud |
| Source |
Common Source |
| Minimum Operating Temperature |
-10° C |
| Maximum Operating Temperature |
60° C |
| Mounting Centers |
5.63in (143 mm) |
