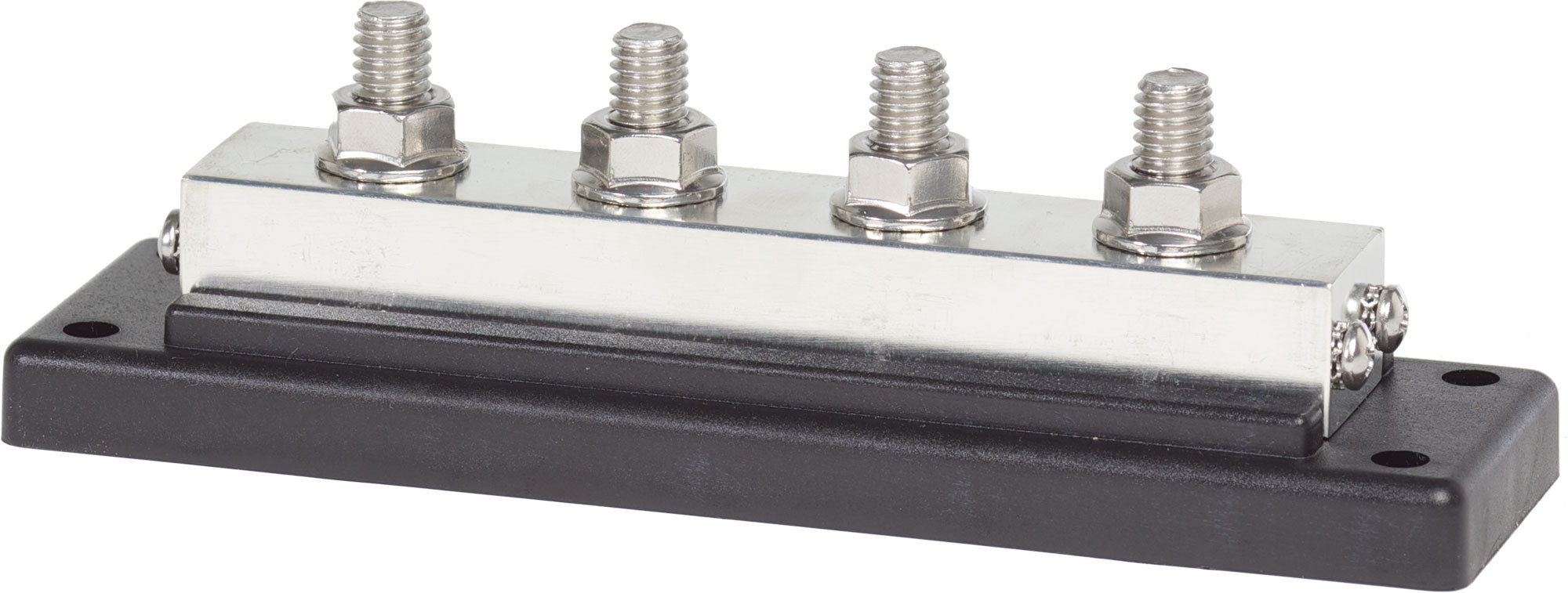

Blue Sea PowerBar 600A BussBar 4 3/8" - 16 Studs

$145.40
by Newmar
Type: Installation Accesories

Blue Sea PowerBar 600A BusBar - Four 3/8"-16 Studs

Model: 2104-BSS
Specifications
Maximum Voltage 300V AC 48V DC
Number of Terminal Studs 4
Terminal Type 3/8"-16 Stud
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 545A AC 600A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/UNS11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 140 in-lb (15.82 Nm)
140 in-lb (15.82 Nm) 1.71lb (0.78 kg)
