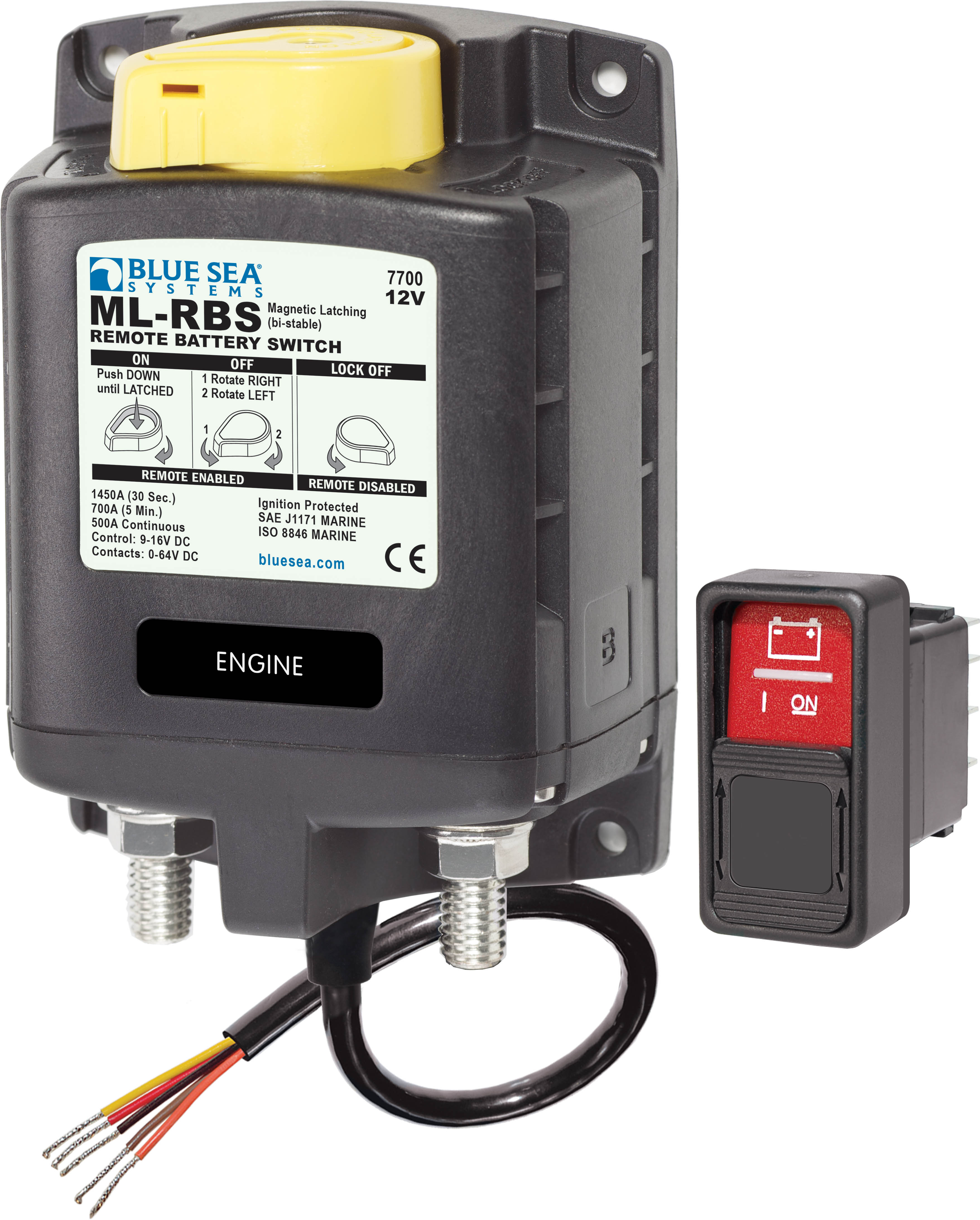

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A
Model: 7700-BSS
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7? 8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Specifications
| Control Circuit Voltage |
9-16V DC |
| Control Circuit Connection |
Tinned Wire |
| Nominal Voltage |
12V DC |
| Manual Control |
Yes |
| Coil Function |
Bi-Stable |
| Amperage Operating Current |
0mA |
| Amperage Operating Current when changing state |
<7A (40 ms) |
| Continuous Rating |
500A |
| Intermittent Rating |
700A - 5 minutes |
| Cranking Rating 30 sec |
1450A DC |
| Minimum Operating Temperature |
-10° C |
| Maximum Operating Temperature |
60° C |
| Cable Size to Meet Ratings |
2x (4/0) |
| Live Current Switching |
300A @ 12V DC |
| Master Control Switch Capability |
No |
| Mechanical Endurance |
100,000 Cycles |
| Terminal Ring Diameter Clearance |
1.18in (29.97 mm) |
| Terminal Stud Length |
0.875in (22.23 mm) |
| Terminal Stud Size |
3/8" - 16 (M10) |
| Weight |
2.05lb (0.93 kg) |
