Blue Sea Dual Battery Bank Management Panel Main + 3 Position

$312.96
by Blue Sea Systems
Type: Battery - Switch

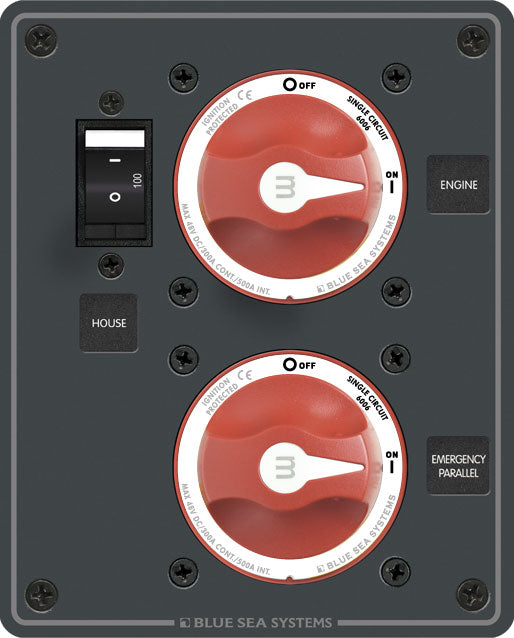

Blue Sea Dual Battery Bank Management Panel

Model: 8080-BSS
  • Isolates the Engine circuit from the House circuit
  • Allows emergency cross connect between isolated battery banks
  • Protects electronics from sags and spikes caused by engine cranking
Specifications
Maximum Voltage 32V DC
Continuous Rating 300A
Intermittent Rating 500A (5 min)
Cranking Rating 10 sec 1500A
Cranking Rating 1 min 775A
Height 6.50in (165.1 mm)
Width 5.25in (133.35 mm)
Depth 3.00in (76.2 mm)
Weight 2.20lb (1 kg)

What's in the Box:
  • 8080 Panel
  • Instructions
