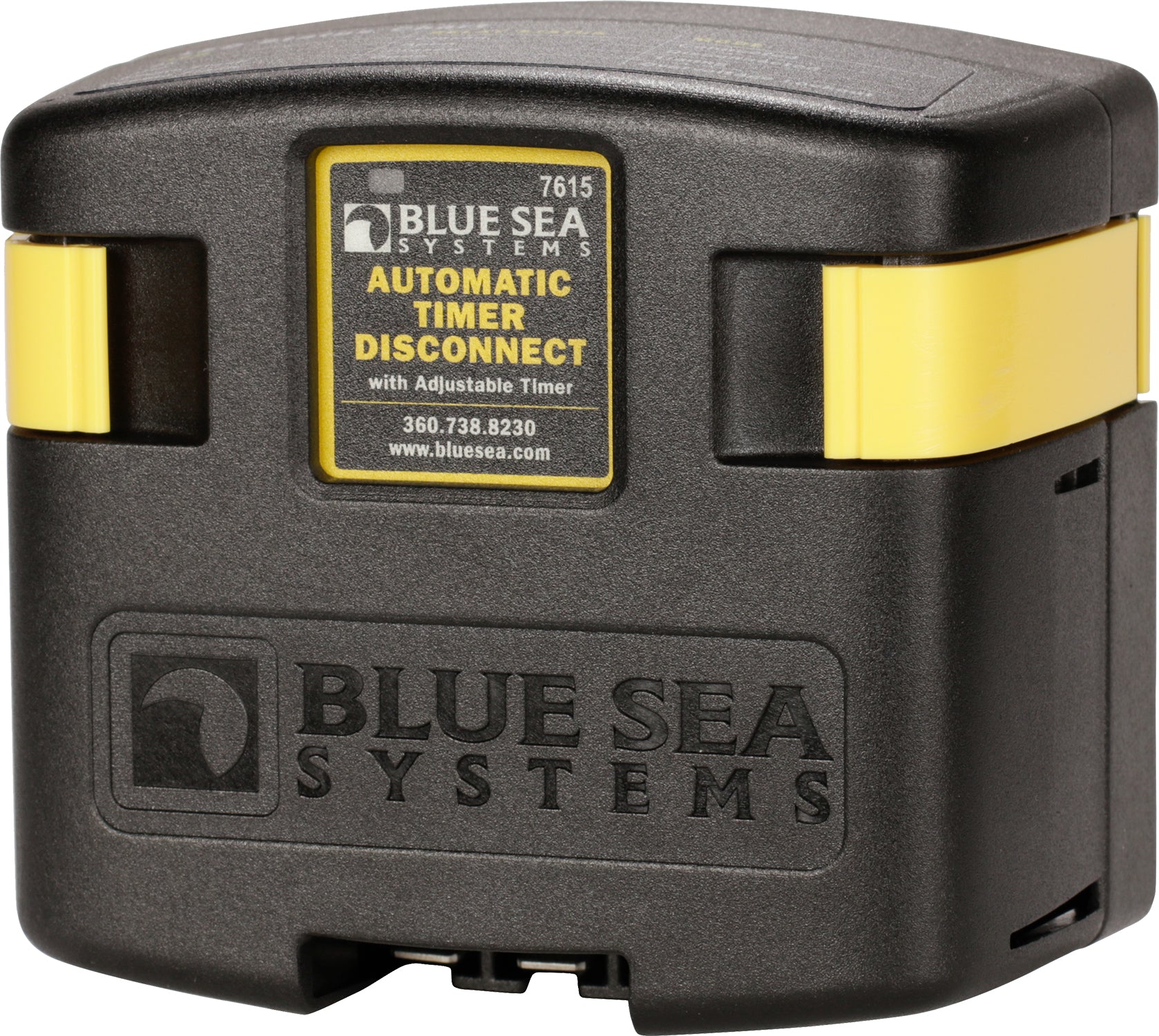

Blue Sea Automatic Timer Disconnect 12vDC

$164.99
by Blue Sea Systems
Type: ELECTRICAL
 More payment options

Blue Sea Systems

Model: 7615-BSS
  • Timer Disconnect - 12V signal triggers relay to connect battery power to devices
  • Timer Disconnect - When signal is removed the timer is activated and will disconnect devices after a preset time
  • Timer Disconnect - Timer ranges from 15 minutes to 4 hours
  • Low Voltage Disconnect -12V signal triggers relay to connect battery power to devices.
  • After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
  • Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
Specifications
Nominal Voltage 12V DC
Amperage Operating Current 175mA (closed)
4mA (open)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 120A
Intermittent Rating 210A (5 Min)
Cable Size to Meet Ratings 1 AWG (50mm )
Charge Sense Connect 13.0V (3 sec)
Charge Sense Disconnect 12.75V (10 sec)
Disconnect Time 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr
Input Voltage Range 9.5-16V
Low Voltage Disconnect 11.0V (10 sec)
11.5V (10 sec)
12.0V (10 sec)
Maximum Cable Size 1/0 AWG (50mm )
Stud Material Tinned Copper
Terminal Ring Diameter Clearance 1.12in (28.45 mm)
Terminal Stud Size 3/8"-16 (M10)
Over Voltage Lockout 16.0V (5 sec)
