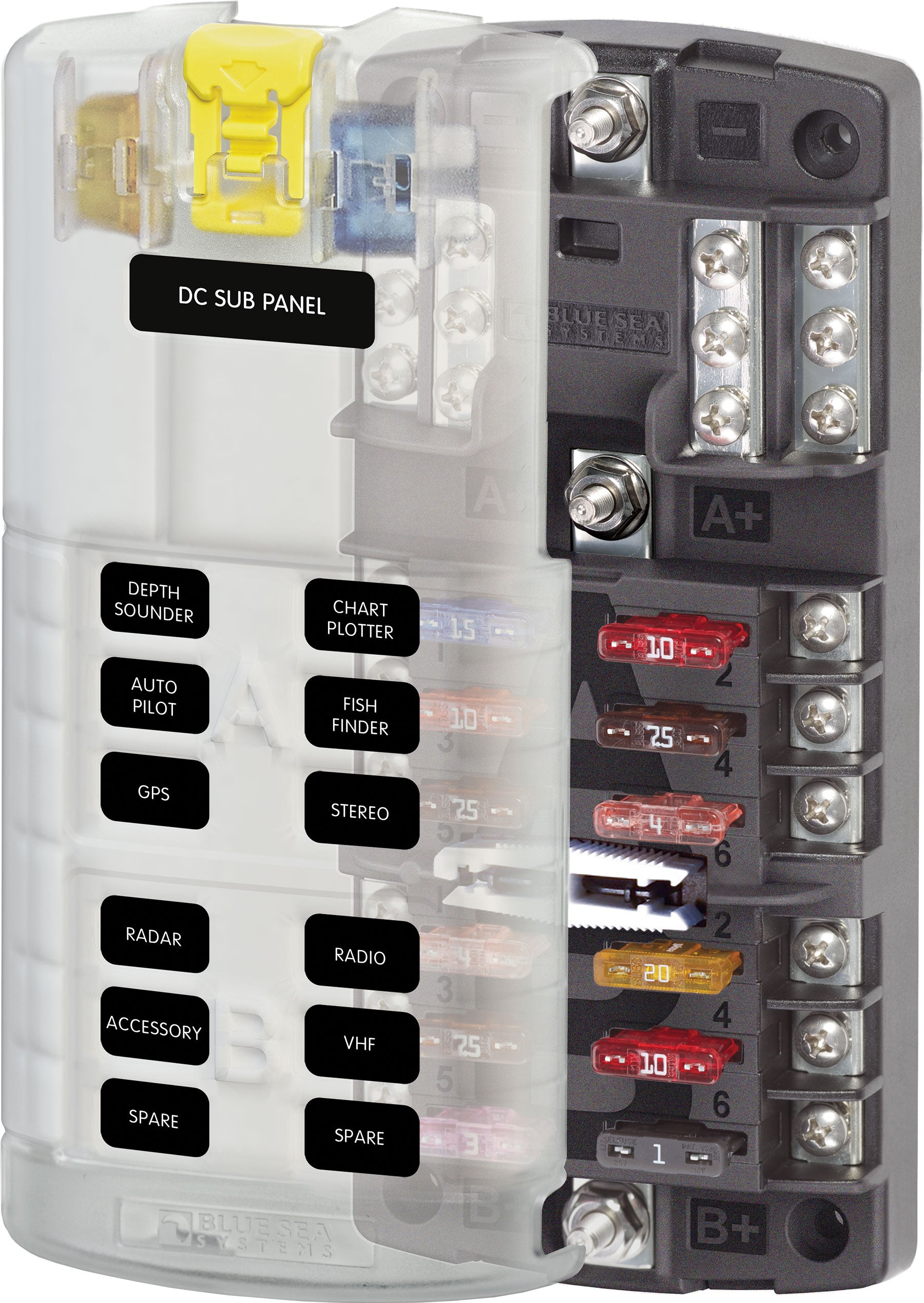

Blue Sea Systems ST Blade Split Bus Fuse Block 12 Circuits
Model: 5032
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
Specifications
| Circuits |
12 |
| Maximum Amperage |
100A per block
30A per circuit |
| Maximum Voltage |
32V DC |
| Mounting |
#8 Screw (M4) |
| Negative Bus |
#10-32 Stud |
| Positive Bus |
#10-32 Stud |
| Recommended Torque |
24 in-lb (2.71 N m) |
| Screw Terminal Torque |
18 in-lb (2.03 Nm) |
| Screw Terminal Type |
#8-32 Screws with captive star lock washer |
| Weight |
0.75lb (0.25 kg) |
| Dimensions |
6.472" h x 3.315" w x 1.518" d |
