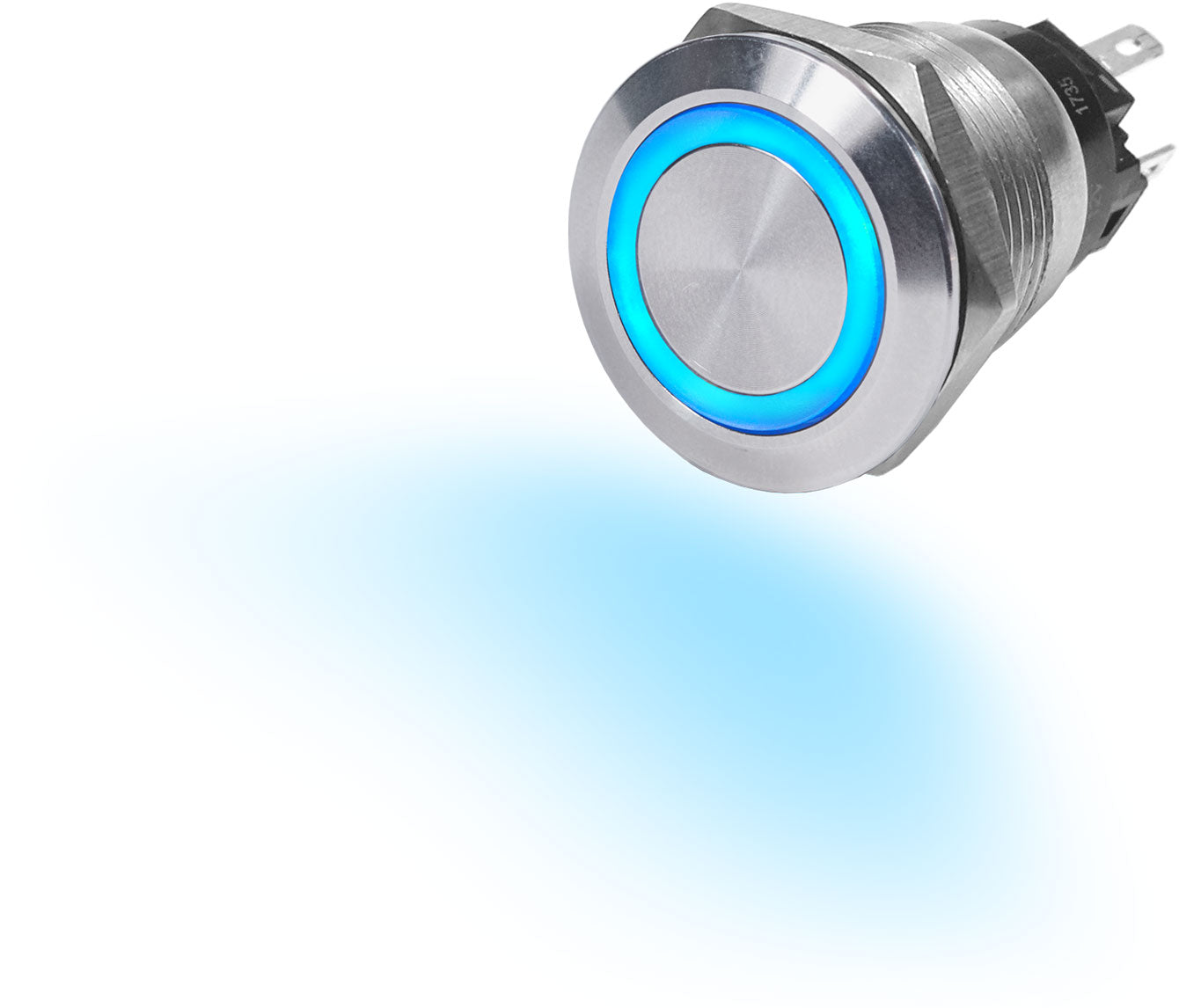

Blue Sea 4161 10A Push Button LED Ring Switch Off-(On) Blue Momentary On

$27.06
by Blue Sea Systems
Type: Installation Accesories

Blue Sea 10A Push Button LED Ring Switch Off-(On) Blue- Momentary On

Model: 4161-BSS
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
Action OFF-(ON)- Momentary One
Amperage 10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage 12V DC
Maximum LED Operating Current 20mA
Minimum Operating Temperature -10° C
Maximum Operating Temperature 70° C
Minimum Storage Temperature -55° C
Maximum Storage Temperature 85° C
Illumination Independent — Separate contacts for LED power
Max Panel Thickness 0.31in (7.87 mm)
Mounting Hole ¾" (19mm)
Switching Cycles 40,000
Termination 5 — 0.110inch Quick Connect terminals
